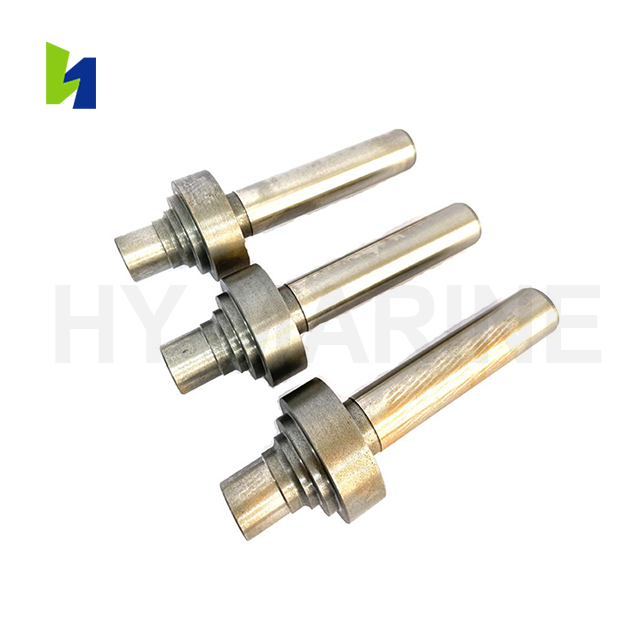

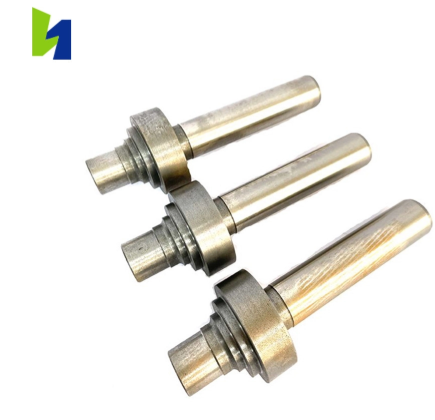

Valve guides are cylindrical components installed in the cylinder head that support the reciprocating motion of intake and exhaust valve stems. They provide a sliding surface for the valve stem, transfer combustion heat from the valve to the cylinder head cooling system, and maintain valve alignment during operation. These marine-grade guides fit both main propulsion and auxiliary diesel engines across multiple manufacturer platforms for commercial procurement.
Phosphorus cast iron valve guides feature a pearlitic matrix structure with uniformly distributed phosphorus particles. This material provides resistance to adhesive wear and scuffing under high-temperature operating conditions. Phosphorus cast iron guides are specified for most standard marine diesel engine applications operating on heavy fuel oil and marine diesel oil.
Phosphorus bronze valve guides offer higher thermal conductivity and conformability than cast iron variants. They are selected for higher-temperature exhaust valve positions and for engines operating under frequent load changes. The bronze material provides a compatible bearing surface for steel valve stems and supports heat dissipation from the valve stem to the cylinder head.
All valve guides undergo finish machining on 5-axis CNC equipment followed by precision internal grinding. Inner diameter and cylindricity tolerances are controlled within 0.008mm. Surface finish on the internal bore is specified to match original equipment requirements for proper oil film formation and wear characteristics.
Each production batch completes raw material spectral analysis, full hardness inspection, and internal bore roughness verification before shipment. Products carry CCS Type Approval certificates and are supplied with dimensional parameter sheets and factory inspection reports. Shipyards and engine overhaul facilities can install these components without additional incoming qualification testing.
MAIN ENGINE | MAN B&W | S26MC,L/S35MC,L/S42MC,L/S50MC,L/S60MC,L/S70MC,L/S80MC,L/S90MC,S46MC-C,S50MC-C,S60MC-C,S70MC-C,S80MC-C,S90MC-C,K90MC-C,K98MC-C,K/L45GF(CA),55GF(CA),67GF(CA),80GF(CA),90GF(CA) |
WARTSILA | 6L20,9L20,8L32,R22,R32,L20,L32 | |
PIELSTICK | PC2-2,PC2-5,PC2-5L,PC2-5V,PC2-6,PA4,PA5,PA6 | |
HANSHIN | EL30-44,ELS-35,44,LH-28G,LU24-54,LUN28AR(G),LUS24-58,LF46-58 | |
NIIGATA | 16HS,16X,18CX,19HX,20AX,25BX,25CX,26AFTE,26KGHS,28AFTE,28BX,28KGHS,31EZ,31X,32CLX,34AFTE | |
SULZER | RTA38,RTA48,RTA52,RTA58,RTA62,RTA68,RTA72,RTA76,RTA84,RL(A/B)56,RL(A/B)66,RL(A/B)76, RL(A/B)90,RND68,RND76 | |
AKASAKA | A31,A34,A38,A41,A45,AH25,AH27,AH28,AH30,AH38,AH40,K28,K31,DM28FD,DM38FD,DM40FD,DM51SS | |
MITSUBISHI | UEC33LSE,UEC37LA,UEC45LA,UEC50LS,UEC52LA,UEC52LS,UEC60LS,UET45/75C,UET45/80D, UET52/90D,UET52/105H | |
AUX.ENGINE | MITSUBISHI | S6A,S6B,S6R,S6N,S16N,S16R,S12R,SA2 |
MAN B&W | 16/24,20/27,21/31,23/30,25/33,28/32,32/40,48/60,58/64 | |
YANMAR | HAL,KL,KDL,KFL,RAL,MAL,S165,S185,M200,M220,T220,T240,T260,Z280,N165,N18,N21,N165,N260,N280, N330,NY16,EY18,EY22,EY26,4CHL,6CHL | |
DAIHATSU | DK20,DK26,DK28,DK32,DL16,DL19,DL20,DL22,DL24,DL26,DL28,DL32,DS18,DS19,DS22,DS26,DS28,DS32, DS40,PK14,PK16,PL24,PL26,PS18,PS20,PS22,PS26,PS30 |
On large ocean-going vessels including container ships and oil tankers, valve guides are replaced during major cylinder head overhauls to restore valve alignment and heat transfer performance. Properly fitted guides maintain valve timing and compression pressure across long operating cycles. Vessel operators install new guides during scheduled dry-docking to prevent gas blow-by and cylinder head damage during subsequent voyages.
Valve guide replacement is a standard procedure during auxiliary engine overhaul for vessel power generation systems. Harbor tugs, offshore support vessels, and ships with frequent load changes benefit from regular guide replacement to maintain generator engine reliability. Both phosphorus cast iron and bronze guides are selected based on engine model specifications and operating temperature profiles.
Phosphorus cast iron guides are supplied for standard intake and exhaust applications. Phosphorus bronze guides are available for high-temperature exhaust positions and engines operating under variable load conditions. Material selection follows original engine specifications.
Each order includes CCS Type Approval certificates, material test reports, and dimensional inspection data sheets covering hardness values, bore diameter measurements, and surface finish results for the production batch.
