Bellows is a critical core flexible compensation component for marine engines and piping systems. Made of high-quality wear-resistant and corrosion-resistant materials, it absorbs thermal expansion, mechanical vibration and axial displacement of pipelines and equipment. It features precise dimensional accuracy, stable structural performance and excellent fatigue resistance, suitable for routine servicing, shipyard overhaul and fault repair under marine harsh working conditions. A well-matched bellows stabilizes pipeline system operation, relieves stress concentration and avoids cracking leakage, reduces component failure risks and equipment downtime, and ensures efficient and reliable operation of marine engine and piping units.
Please provide equipment model, specifications and part number before ordering to confirm compatibility.
M220 Bellows for Marine Diesel Engine Spare Parts

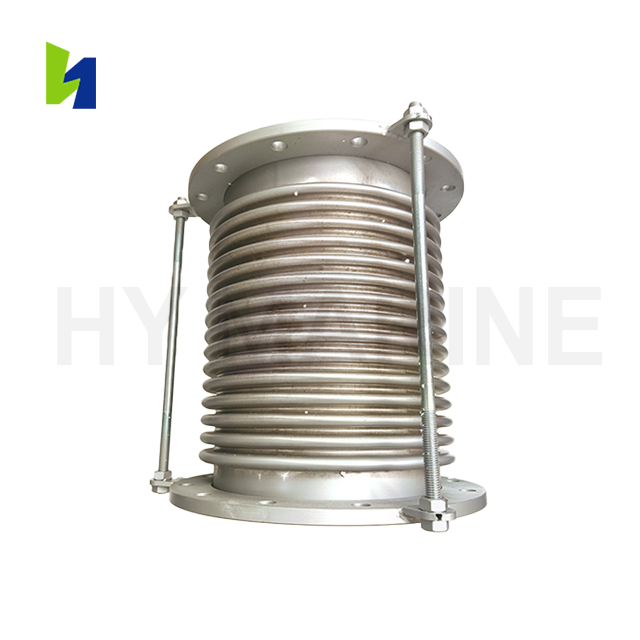

The M220 Bellows is a flexible expansion compensation component specially designed for YANMAR M220 series marine diesel engines. Installed on exhaust or piping assembly of the engine system, this bellows absorbs thermal expansion, mechanical displacement and vibration displacement between connected pipelines. It buffers engine vibration transmission, compensates thermal elongation caused by high exhaust temperature, reduces pipeline stress and prevents crack and leakage at pipe joints. It maintains reliable sealing under temperature fluctuation and cyclic vibration, protecting adjacent pipe and engine components from excessive mechanical stress. Cracked, aged or deformed bellows will lead to gas leakage, pipeline vibration amplification and damage to nearby piping and fittings. Replacing with standard M220 Bellows restores vibration compensation and sealing performance and guarantees stable operation of YANMAR M220 marine diesel engines.
Working under harsh marine operating conditions including long-time full-load continuous navigation, high exhaust temperature, cyclic thermal shock and cabin salt-fog corrosion, the bellows will gradually suffer fatigue cracking, wall thinning, material aging and sealing failure after thousands of operating hours. Damaged bellows causes exhaust leakage, heat loss and pipeline resonance risk. Regular inspection and replacement of bellows are essential routine maintenance and dry-dock overhaul items for YANMAR M220 marine diesel engines.
This dedicated M220 bellows adopts optimized multi-layer stainless steel structure with uniform internal texture and outstanding thermal fatigue resistance. Precision corrugated forming ensures good axial and lateral compensation capacity, absorbing thermal expansion and vibration displacement smoothly without permanent deformation. It can maintain stable flexibility and sealing performance under repeated high temperature cycles and continuous engine vibration, effectively avoiding pipeline stress concentration and gas leakage.
With excellent high-temperature oxidation resistance and marine salt fog corrosion resistance, the bellows adapts to complex and variable ship operating conditions including frequent start-stop, variable load operation and humid salt-fog cabin environment. It effectively reduces pipeline system failure rate, lowers daily maintenance and replacement costs, and greatly improves the operational safety, stability and service cycle of YANMAR M220 marine diesel engines.
The M220 Bellows is manufactured from premium high-temperature resistant stainless steel material, specially customized for high temperature exhaust and vibration working environment of YANMAR M220 marine diesel engine. Multi-layer integral forming eliminates internal porosity and structural defects. Multiple stress relief treatments remove residual machining stress to ensure no fatigue crack under long-term thermal cycling. Key corrugated section adopts precision hydraulic forming and surface finishing treatment to strictly control corrugation dimension, wall thickness and sealing flatness. The whole production process fully complies with YANMAR OEM technical standards and universal marine diesel industry manufacturing specifications.
Quantified Marine-Grade Performance Parameters
Parameter | Specification | Test & Implementation Standard |
Core Material | High temperature resistant multi-layer stainless steel | Raw material spectrum component inspection |
Surface Treatment | Pickling & passivation, corrugated forming | Surface corrosion & visual defect inspection |
Dimensional Tolerance | OEM-level overall dimension & corrugation tolerance | CMM full-dimensional precision detection |
Mechanical Performance | Vibration absorption, expansion compensation | Fatigue cycle & pressure tightness test |
Working Stability | High temperature resistant, anti-oxidation | High temperature thermal cycle simulation test |
Service Feature | Compensate thermal displacement, reduce vibration | Marine vibration cycle simulation test |
Compliance Standard | Universal marine industrial manufacturing specifications | YANMAR OEM & marine diesel industry norms |
All M220 Bellows are manufactured strictly in accordance with YANMAR OEM engineering drawings and marine engine pipeline compensation component standards. Every finished bellows undergoes raw material verification, hydraulic corrugated forming, heat treatment calibration and flange surface finishing. Key length, corrugation profile, wall thickness and sealing flatness are fully controlled to ensure perfect matching with exhaust pipe and engine connection flange.
Each bellows passes strict pre-delivery full inspection, including full dimensional calibration, surface defect screening, air tightness test and assembly matching test. All technical parameters completely match original equipment standards, supporting direct drop-in replacement without secondary processing, effectively improving pipeline sealing and post-overhaul operational stability.
MAIN ENGINE | MAN B&W | S26MC,L/S35MC,L/S42MC,L/S50MC,L/S60MC,L/S70MC,L/S80MC,L/S90MC,S46MC-C,S50MC-C,S60MC-C,S70MC-C,S80MC-C,S90MC-C,K90MC-C,K98MC-C,K/L45GF(CA),55GF(CA),67GF(CA),80GF(CA),90GF(CA) |
WARTSILA | 6L20,9L20,8L32,R22,R32,L20,L32 | |
PIELSTICK | PC2-2,PC2-5,PC2-5L,PC2-5V,PC2-6,PA4,PA5,PA6 | |
HANSHIN | EL30-44,ELS-35,44,LH-28G,LU24-54,LUN28AR(G),LUS24-58,LF46-58 | |
NIIGATA | 16HS,16X,18CX,19HX,20AX,25BX,25CX,26AFTE,26KGHS,28AFTE,28BX,28KGHS,31EZ,31X,32CLX,34AFTE | |
SULZER | RTA38,RTA48,RTA52,RTA58,RTA62,RTA68,RTA72,RTA76,RTA84,RL(A/B)56,RL(A/B)66,RL(A/B)76, RL(A/B)90,RND68,RND76 | |
AKASAKA | A31,A34,A38,A41,A45,AH25,AH27,AH28,AH30,AH38,AH40,K28,K31,DM28FD,DM38FD,DM40FD,DM51SS | |
MITSUBISHI | UEC33LSE,UEC37LA,UEC45LA,UEC50LS,UEC52LA,UEC52LS,UEC60LS,UET45/75C,UET45/80D, UET52/90D,UET52/105H | |
AUX.ENGINE | MITSUBISHI | S6A,S6B,S6R,S6N,S16N,S16R,S12R,SA2 |
MAN B&W | 16/24,20/27,21/31,23/30,25/33,28/32,32/40,48/60,58/64 | |
YANMAR | HAL,KL,KDL,KFL,RAL,MAL,S165,S185,M200,M220,T220,T240,T260,Z280,N165,N18,N21,N165,N260,N280, N330,NY16,EY18,EY22,EY26,4CHL,6CHL | |
DAIHATSU | DK20,DK26,DK28,DK32,DL16,DL19,DL20,DL22,DL24,DL26,DL28,DL32,DS18,DS19,DS22,DS26,DS28,DS32, DS40,PK14,PK16,PL24,PL26,PS18,PS20,PS22,PS26,PS30 |
We supply full-series matching spare parts for YANMAR M220 engine exhaust system overhaul, including exhaust pipe, sealing gasket, flange, clamp, expansion joint and complete exhaust overhaul kits, providing one-stop procurement solutions for shipyards, shipping companies and marine engine maintenance suppliers.
Each batch of M220 Bellows undergoes full-process professional inspection and performance screening, including raw material spectrum analysis, metallographic structure detection, full dimensional calibration, air tightness test and fatigue inspection. All inspection data and test records are completely archived for customer review and ship dry-dock overhaul audit.
Manufactured in strict compliance with universal marine diesel industry norms and YANMAR OEM technical specifications, this bellows fully meets the operational demands of daily ship navigation and engine overhaul projects, serving as high-quality matching replacement parts for marine ship diesel engines.
The bellows is a core flexible compensation component of YANMAR M220 engine exhaust piping system. Long-term high-temperature thermal cycling, vibration fatigue and marine salt-fog corrosion will cause corrugation cracking, wall thinning and gas leakage. Replace the bellows during major overhaul if crack, deformation or leakage is detected. Installing new standard M220 Bellows restores vibration buffering and thermal displacement compensation, protects exhaust pipeline from thermal stress damage and prevents exhaust gas leakage.
Regular inspection of bellows surface condition and tightness is an essential dry-dock maintenance work for YANMAR M220 marine diesel engines. Long-term continuous operation will accumulate thermal fatigue and corrosion for flexible piping components. Timely inspection and replacement can effectively avoid exhaust leakage, pipeline resonance and heat loss, eliminating hidden operational risks and ensuring stable and safe operation of ship power equipment.
Which engine does this bellows fit? This bellows is specially customized for YANMAR M220 series marine ship diesel engines, also compatible with multiple mainstream marine main and auxiliary engine models listed above. Please provide complete engine model or original part number for accurate matching confirmation.
What is the delivery time? Standard M220 Bellows are in stock with 7–10 working days fast delivery. Non-standard customized specifications support 7–15 working days production cycle.
Can you provide customized processing services? Yes, we support OEM customization and non-standard processing according to customer drawings and samples. All customized products undergo full-dimensional inspection and performance testing before shipment.
What is your warranty policy? 12-month warranty for material and manufacturing defects. We provide professional after-sales technical support including installation guidance and assembly parameter verification.
What is the MOQ and export packaging? MOQ is 1 unit for in-stock products, with favorable bulk discount for fleet batch orders. Standard export packaging adopts anti-rust oil treatment, moisture-proof wrapping and solid plywood crating, adapting to long-distance ocean transportation and overseas storage.
