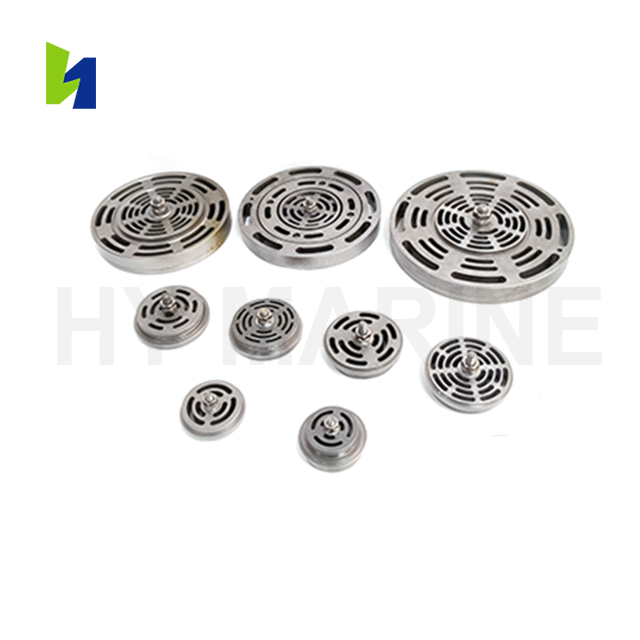

SC7N Marine Air Compressor Suction Discharge Valve Assembly

SC7N Marine Air Compressor Suction Discharge Valve Assembly is a critical core maintenance component for marine SC7N air compressors. Made of high-quality pressure-resistant and wear-resistant materials, it restores standard suction and discharge performance and prevents equipment abnormality during compression operation. It features precise dimensional accuracy, stable structural performance and excellent pressure fatigue resistance, suitable for routine servicing, shipyard overhaul and fault repair under marine high-pressure cyclic working conditions.

A well-matched suction discharge valve assembly stabilizes compressor operation efficiency, prevents airflow disorder and system failure, reduces component failure risks and equipment downtime, and ensures efficient and reliable operation of marine SC7N air compressors. Please provide compressor model, specifications and part number before ordering to confirm compatibility.

Function of SC7N Marine Air Compressor Suction Discharge Valve Assembly Marine Spare Parts

Accurate Air Intake & Exhaust Control for YANMAR SC7N Marine Piston Air Compressor

SC7N suction and discharge valve assembly is the core flow control component specially designed for YANMAR SC7N marine piston starting-air compressor. Integrated with valve seat, valve plate, return springs and sealing gaskets, the assembly relies on pressure difference to achieve precise opening and closing cycles. It controls fresh air suction and compressed air discharge of the cylinder chamber, prevents internal air reverse flow and inter-stage pressure loss. The valve’s sealing tightness, fatigue resistance and structural stability directly determine volumetric efficiency, air delivery capacity and continuous operational reliability of the YANMAR SC7N compressor unit.

Role in Vessel Compressed‑Air System Operation

Standard suction and discharge valve timing ensures sufficient air intake volume and stable compression ratio during reciprocating operation. Reliable one‑way sealing eliminates compressed air backflow, pressure attenuation and residual gas retention inside the cylinder. Well‑calibrated valve assemblies maintain consistent outlet pressure and dry, clean compressed air output, providing stable air source for main engine starting system, pneumatic control circuits and marine auxiliary equipment during long‑term ocean navigation and port berthing. Stable valve operation effectively avoids frequent pressure fluctuation and abnormal compressor shutdown alarms.

Materials for SC7N Suction Discharge Valve Assembly Components

High‑Fatigue Alloy Steel, Anti‑Corrosion Spring Steel & High‑Temperature Sealing Material

Valve plates adopt heat‑treated high‑strength alloy steel with excellent bending fatigue resistance, adapting to long‑term high‑frequency opening‑closing impact. Return valve springs are manufactured from anti‑corrosion spring steel with stress relief treatment, maintaining stable elasticity under marine humid and salt‑fog environment. Valve seats adopt high‑rigidity wear‑resistant steel to resist high‑pressure abrasion. All gaskets and sealing parts adopt high‑temperature resistant composite materials to ensure durable sealing performance under variable working pressure and temperature. All materials comply with YANMAR SC7N OEM original specifications.

Machining Tolerances and Surface Finish

Each SC7N suction discharge valve assembly is precisely processed in strict accordance with YANMAR OEM drawing standards. Valve plates undergo precision cutting, heat treatment and mirror surface lapping to achieve zero‑gap fitting with valve seats. Key dimensions including valve flatness, spring stiffness and mounting hole position are fully inspected and calibrated. Smooth burr‑free mating surfaces eliminate assembly gaps, minimize air leakage risks and ensure sensitive and accurate valve response. The whole assembly supports direct drop‑in replacement without on‑site modification.

Compatible Air Compressor Models

Supported YANMAR Series

YANMAR SC7N marine piston air compressor

Compatible reference: SC5N, SC10N, SC12.5N, SC15N, SC20N, SC30N, SC40N, SC50N, SC60N, C220

Multi‑Brand Compatible Models

Additional Marine Spare Parts

Matching with SC7N suction discharge valve assembly, we supply full‑range supporting marine compressor and turbocharger spare parts, including single valve plates, valve springs, valve seats, overhaul repair kits, piston rings, pistons, cylinder gaskets, cooler plates, cylinder liners, turbine wheels, compressor impellers, nozzle rings, bearing bushes, thrust bearings and other marine accessories.

Quality Control and Certification for SC7N Suction Discharge Valve Assembly

Inspection Procedures Before Dispatch

Each batch completes raw material verification, dimensional tolerance inspection, spring fatigue performance test and sealing tightness test. All inspection test records are fully archived and can be provided for enterprise customer review and vessel audit.

Classification Society Compliance

SC7N suction discharge valve assembly can be supplied with CCS Type Approval documentation as required, supporting vessel classification survey and dry‑dock inspection to meet international maritime operation regulations.

Applications for SC7N Valve Assembly Replacements

Main Engine Starting‑Air Compressor Overhaul

Suction and discharge valve assemblies are core vulnerable parts for YANMAR SC7N compressor routine overhaul. Long‑term cyclic impact, high‑pressure load and salt‑fog corrosion easily cause valve plate deformation, spring fatigue failure and sealing aging, resulting in air backflow, reduced air displacement and slow pressure build‑up. Installing brand‑new SC7N valve assembly restores original suction‑exhaust accuracy and rated compression efficiency of the compressor.

Auxiliary Engine Air Compressor Maintenance

SC7N compressor units for auxiliary air supply require periodic valve system inspection and replacement. Especially for vessels sailing in coastal high‑salt‑fog zones and dusty port environments, timely replacement ensures stable compressed‑air output, guarantees reliable starting air and control air supply for main and auxiliary engines during port berthing and open‑sea navigation.

FAQ About SC7N Marine Air Compressor Suction Discharge Valve Assembly

Which compressor models fit this SC7N valve assembly?

This suction and discharge valve assembly is specially designed for YANMAR SC7N marine air compressor, also compatible with multiple YANMAR SC series models. Please provide equipment model or part number for accurate compatibility confirmation.

Are CCS certification documents available with each order?

CCS Type Approval certificates can be offered according to customer requirements to support ship inspection and dry‑dock audit.

What is the typical lead time for SC7N valve assembly orders?

Standard SC7N suction discharge valve assemblies are in stock and can be dispatched within 7‑10 working days after order confirmation. Customized production is available for special specifications.

Can valve assemblies be customized according to drawings or samples?

Yes, we support custom manufacturing according to customer technical drawings or physical samples. Strict material validation and full‑dimension performance testing will be finished before delivery to guarantee perfect assembly matching and stable operation.
