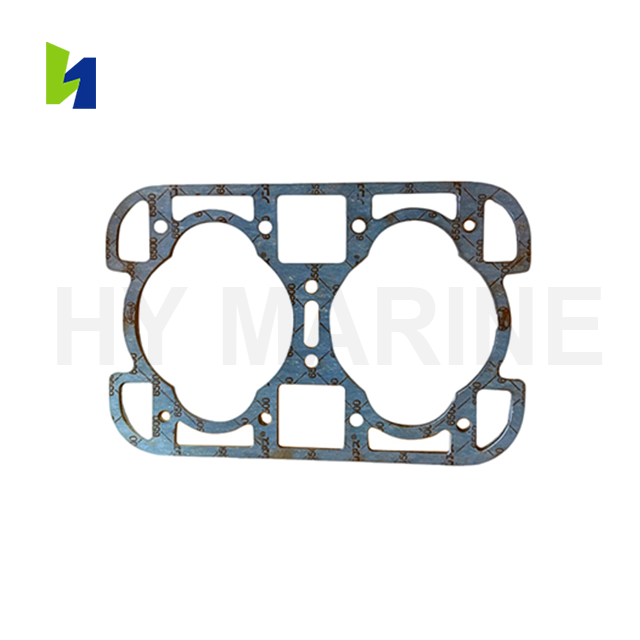

HV1/120 Cylinder Lower Gasket Air Compressor Spare Parts

HV1/120 Cylinder Lower Gasket Air Compressor Spare Parts is a critical core sealing component for marine HV1/120 air compressors. Made of high-quality pressure-resistant and wear-resistant materials, it provides reliable sealing for the cylinder bottom and prevents air leakage during compression operation. It features precise dimensional accuracy, stable structural performance and excellent pressure fatigue resistance, suitable for routine servicing, shipyard overhaul and fault repair under marine high-pressure cyclic working conditions.

A well-matched cylinder lower gasket stabilizes compressor compression efficiency, prevents air leakage and pressure loss, reduces component failure risks and equipment downtime, and ensures efficient and reliable operation of marine HV1/120 air compressors. Please provide compressor model, specifications and part number before ordering to confirm compatibility.

Function of HV1/120 Cylinder Lower Gasket Air Compressor Spare Parts

Cylinder Base Sealing & Pressure Stabilization for SPERRE HV1/120 Marine Piston Air Compressor

HV1/120 cylinder lower gasket is the core static sealing component installed between cylinder base and crankcase of SPERRE HV1/120 marine piston air compressor. It undertakes dual sealing functions of air pressure isolation and lubricating oil sealing. The gasket tightly fills assembly gaps between cylinder body and lower base, preventing internal compressed‑air leakage, crankcase oil seepage and external dust & salt fog ingress. Its compression resistance, elasticity recovery and anti‑aging performance directly determine cylinder assembly tightness, compression efficiency and long‑term operational stability of the HV1/120 compressor unit.

Role in Vessel Compressed‑Air System Operation

Reliable cylinder lower gasket sealing maintains stable internal cylinder pressure and intact lubrication system environment. It effectively avoids pressure drop caused by bottom gap air leakage and prevents lubricating oil loss that leads to insufficient bearing lubrication. Well‑matched gasket performance ensures continuous and stable compressed‑air output, providing reliable air source for main engine starting system, pneumatic control circuits and various marine auxiliary equipment during long‑distance ocean navigation and port berthing.

Materials for HV1/120 Cylinder Lower Gasket Components

High‑Density Composite Fiber & Oil‑Resistant Reinforced Sealing Material

HV1/120 cylinder lower gasket adopts high‑strength multi‑layer composite fiber material with high temperature resistance, oil resistance and compression resilience. Reinforced fiber structure improves pressure bearing capacity, avoiding permanent deformation under long‑term assembly compression and mechanical vibration. Special anti‑corrosion surface treatment adapts to marine humid, salt‑fog and high‑vibration working environment. All material specifications fully comply with SPERRE HV1/120 OEM original standards.

Machining Tolerances and Surface Finish

Each HV1/120 cylinder lower gasket is manufactured strictly according to OEM drawing dimensions. Precision die‑cutting process ensures accurate bolt hole positioning, complete outline fitting and uniform thickness. Flat and burr‑free surface guarantees 100% close fitting with cylinder base and crankcase mating surfaces. Stable compression ratio eliminates assembly gaps, effectively preventing gas leakage and oil seepage risks. Standard size supports direct drop‑in replacement without on‑site cutting or modification.

Compatible Air Compressor Models

Supported SPERRE Series

SPERRE HV1/120 marine piston air compressor

Compatible reference: HV1/85, HV1/140, HV1/156, HV2/200, HV2/210, HV2/220, HV2/240, HV2/270, HL2‑77, HL2‑90, HL2‑105, HL2‑120, HL2‑140, HL2‑160

Multi‑Brand Compatible Models

Additional Marine Spare Parts

Matching with HV1/120 cylinder lower gasket, we supply full‑range supporting spare parts for SPERRE, SAUER, TANABE, HATLAPA air compressors and turbocharger series, including cylinder upper gaskets, valve gaskets, overhaul kits, piston rings, pistons, cylinder liners, valve plates, valve springs, bearing bushes, thrust bearings and other marine accessories.

Quality Control and Certification for HV1/120 Cylinder Lower Gasket

Inspection Procedures Before Dispatch

Each batch of HV1/120 cylinder lower gaskets undergoes material density test, compression resilience detection, dimensional tolerance inspection and surface flatness check. All inspection records are archived and can be provided for enterprise customer review and vessel audit.

Classification Society Compliance

HV1/120 cylinder lower gasket can be supplied with CCS Type Approval documentation as required, supporting vessel classification survey and dry‑dock inspection complying with international maritime regulations.

Applications for HV1/120 Cylinder Lower Gasket Replacements

Main Engine Starting‑Air Compressor Overhaul

Cylinder lower gaskets are key static wearing parts for routine compressor overhaul. Long‑term mechanical vibration, high‑pressure extrusion and marine environmental erosion easily cause gasket aging, hardening, deformation and sealing failure, resulting in bottom air leakage, oil seepage, reduced air displacement and unstable pressure. Replacing with brand‑new HV1/120 cylinder lower gasket restores cylinder assembly tightness and original compressor working performance.

Auxiliary Engine Air Compressor Maintenance

HV1/120 compressor units for auxiliary air supply require regular gasket inspection and replacement. Especially for vessels operating in dusty ports and coastal salt‑fog areas, timely replacement prevents minor leakage deterioration into major faults, ensuring long‑term stable and safe operation of ship compressed‑air systems.

FAQ About HV1/120 Cylinder Lower Gasket

Which compressor models fit this HV1/120 cylinder lower gasket?

This gasket is specially designed for SPERRE HV1/120 marine air compressor, also compatible with multiple SPERRE HV/HL series models. Please provide equipment model or part number for accurate confirmation.

Are CCS certification documents available with each order?

CCS Type Approval certificates can be offered according to customer requirements to support ship inspection and dry‑dock audit.

What is the typical lead time for HV1/120 cylinder lower gasket orders?

Standard HV1/120 cylinder lower gaskets are in stock and can be dispatched within 7‑10 working days after order confirmation. Custom cutting and special specifications are acceptable.

Can gaskets be customized according to drawings or samples?

Yes, we support custom production according to customer technical drawings or physical samples. Strict dimensional inspection and sealing performance testing will be completed before delivery to guarantee perfect fitting.
