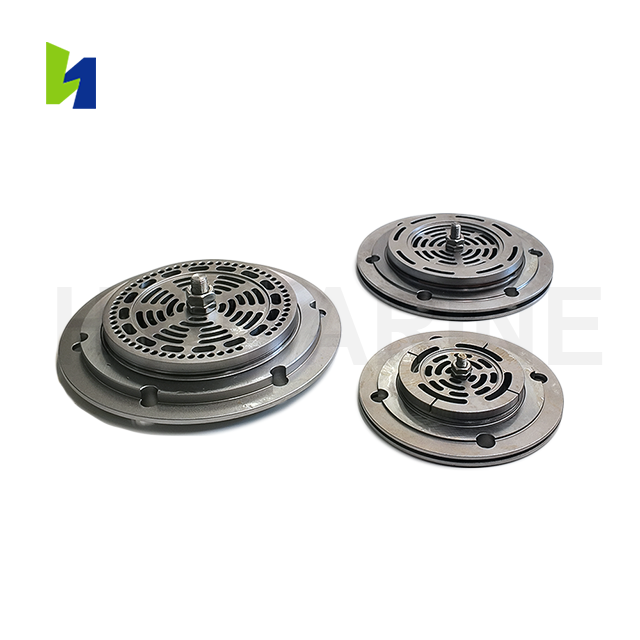

Marine Air Compressor WP271L 1st/2nd/3rd Stage Valve Assembly

Marine Air Compressor WP271L 1st/2nd/3rd Stage Valve Assembly is a critical core valve component for marine WP271L air compressors. Made of high-quality wear-resistant and pressure-resistant materials, it precisely controls gas intake and discharge for each stage and prevents compressed air backflow. It features precise dimensional accuracy, stable structural performance and excellent pressure fatigue resistance, suitable for routine servicing, shipyard overhaul and fault repair under marine high-pressure cyclic working conditions.

A well-matched stage valve assembly stabilizes compressor air output, prevents air backflow and pressure loss, reduces component failure risks and equipment downtime, and ensures efficient and reliable operation of marine WP271L air compressors. Please provide compressor model, specifications and part number before ordering to confirm compatibility.

Function of Marine Air Compressor WP271L 1st/2nd/3rd Stage Valve Assembly Marine Spare Parts

Multi‑Stage Air‑Flow Control for SAUER WP271L Three‑Stage Air‑Cooled Piston Air Compressor

WP271L 1st/2nd/3rd stage valve assembly is the complete suction & discharge valve core component for SAUER WP271L Passat‑series marine three‑stage air‑cooled starting‑air compressor. Each‑stage valve assembly consists of valve seat, valve plate, return springs and sealing gaskets. Operating under pressure difference, these assemblies implement periodic opening‑closing for compression chambers of first‑stage low‑pressure, second‑stage intermediate‑pressure and third‑stage high‑pressure respectively, governing multi‑step air compression process and preventing compressed‑air reverse flow between stages. Sealing performance, fatigue resistance and dimensional matching of each stage valve assembly directly decide volumetric efficiency, final discharge pressure and overall operational reliability of WP271L compressor unitSauer Comp....

Role in Vessel High‑Pressure Compressed‑Air System Operation

Well‑matched 1st, 2nd and 3rd‑stage valve assemblies maintain accurate timing for multi‑level suction‑exhaust circulation. Reliable one‑way inter‑stage sealing avoids cross‑stage air backflow and pressure loss. Properly functioning valve assemblies stabilize high‑pressure compressed‑air output, offering dependable air source for main engine starting‑air receiver, pneumatic control circuits and other onboard auxiliary equipment during long‑distance ocean‑going navigation and port berthing. The third‑stage high‑pressure valve assembly bears the highest working temperature and pressure, which is critical for reaching rated final working pressure of the compressor.

Materials for WP271L 1st/2nd/3rd Stage Valve Assembly Components

High‑Fatigue Spring Steel, Heat‑Resistant Alloy & Composite Non‑Asbestos Sealing Material

Valve plates adopt heat‑treated high‑fatigue spring steel, resisting repeated bending impact under high‑frequency reciprocating cycles. Return valve springs are manufactured from anti‑corrosion spring steel, adapting to salt‑fog and humid ambient atmosphere onboard vessels. Valve seats adopt high‑strength heat‑resistant alloy, resisting high‑temperature abrasion especially for second‑stage and third‑stage high‑pressure working conditions. Gaskets and sealing elements adopt high‑temperature‑resistant non‑asbestos composite material, maintaining stable sealing performance under varying pressure and temperature across three compression stages. All components comply with SAUER WP271L OEM material standards.

Machining Tolerances and Surface Finish

Every component of WP271L multi‑stage valve assemblies is processed strictly in accordance with SAUER WP271L OEM drawing specifications. Valve plates undergo precision cutting, heat treatment and surface lapping to guarantee flat sealing contact with valve‑seat mating surface. Critical dimensions including spring free length, valve‑seat flatness and gasket thickness for 1st, 2nd and 3rd‑stage are fully inspected separately. Fine‑finished mating surfaces eliminate assembly gaps and minimize inter‑stage air‑leakage risks. Each stage valve assembly is pre‑checked for matching before delivery for direct drop‑in replacement.

Compatible Air Compressor Models

Supported SAUER Passat Series

SAUER WP271L marine three‑stage air‑cooled piston air compressor

Compatible reference: WP81L, WP101L, WP121L, WP151L, WP311L

Additional Marine Spare Parts

Matching with WP271L multi‑stage valve assemblies, we supply full‑range supporting spare parts for SAUER, TANABE, HATLAPA air compressors and turbocharger series, including single valve plates, valve springs, valve seats, piston rings, pistons, complete overhaul kits, turbine wheels, compressor impellers, nozzle rings, compressor diffusers, bearing bushes, thrust bearings, shaft seal rings, rotor shafts, service kits, turbine casings and other marine accessories.

Quality Control and Certification for WP271L 1st/2nd/3rd Stage Valve Assembly

Inspection Procedures Before Dispatch

Each batch completes raw material verification, separate‑stage dimensional checking, spring fatigue performance test and sealing tightness test for 1st,2nd,3rd‑stage assemblies respectively. Inspection test records can be provided for corporate customers upon request.

Classification Society Compliance

WP271L 1st/2nd/3rd stage valve assembly can be supplied with CCS Type Approval documentation as required. Relevant documents support ship‑owners and marine service companies for vessel classification survey and dry‑dock inspection complying with international maritime regulations.

Applications for WP271L Multi‑Stage Valve Assembly Replacements

Main Engine Starting‑Air Compressor Overhaul

1st/2nd/3rd‑stage suction & discharge valve assemblies are core wearing parts for periodic overhaul of SAUER WP271L three‑stage starting‑air compressor. Long‑term cyclic impact and high‑temperature load may cause valve‑plate fracture, spring relaxation, valve‑seat surface abrasion and gasket aging, resulting in inter‑stage air back‑flow, insufficient air displacement and slow build‑up of final high pressure. Installing matched new‑stage valve assemblies restores multi‑stage suction‑exhaust performance to original design parameters.

Auxiliary Engine Air Compressor Maintenance

WP271L compressor units serving for auxiliary compressed‑air supply also need periodic inspection and replacement of stage valve assemblies. Especially for vessels sailing in coastal high‑salt‑fog zones or dusty port operating conditions, timely replacement of worn‑out valve assemblies ensures stable high‑pressure compressed‑air supply for main and auxiliary engines during port berthing and open‑sea navigation.

FAQ About WP271L 1st/2nd/3rd Stage Valve Assembly

Which compressor models fit these WP271L multi‑stage valve assemblies?

These 1st/2nd/3rd stage valve assemblies are specially designed for SAUER WP271L three‑stage marine air compressor. Please provide compressor model or part number from equipment manual for compatibility confirmation.

Are CCS certification documents available with each order?

CCS Type Approval certificates can be offered for applicable model range. Please specify certification requirements at inquiry stage so relevant documents can be prepared prior to shipment.

What is the typical lead time for WP271L stage valve assembly orders?

Standard WP271L 1st/2nd/3rd stage valve assemblies are in stock, goods can be dispatched within 7‑10 working days after order confirmation. Non‑standard customized sets need extra production cycle subject to drawing assessment.

Can valve assemblies be manufactured according to customer‑supplied drawings or samples?

Yes, customized stage valve assemblies can be produced according to customer technical drawings or physical samples. Material validation and full‑dimension inspection for each compression stage will be finished before delivery to guarantee assembly and functional matching.
