VTR251 Turbin Casing Flange Turbocharger Deisel Engine Patrs

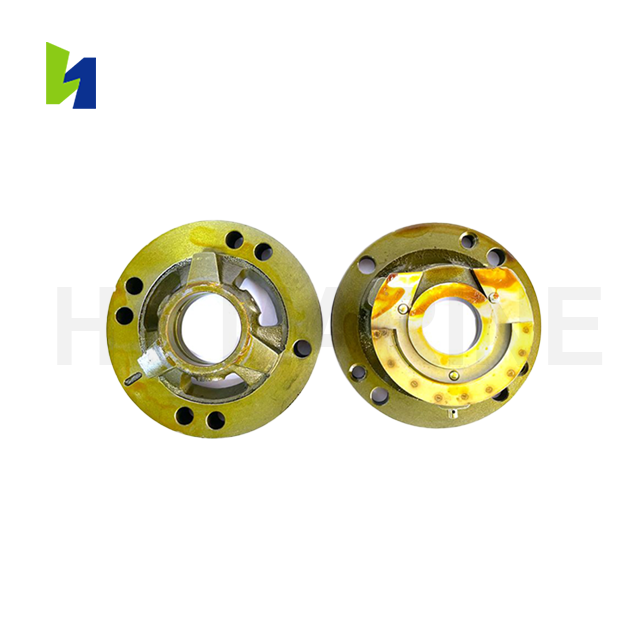

Turbine Casing Flange is a precision sealing and connecting component for marine turbochargers. Constructed from high‑temperature resistant alloy, it connects and seals the turbine casing assembly. It delivers stable connection performance, excellent heat‑deformation resistance and reliable sealing, suitable for routine servicing, shipyard overhaul and fault repair under marine high‑temperature exhaust working conditions.

A properly matched turbine casing flange avoids hot gas leakage, secures casing joint connection, reduces vibration‑induced wear, cuts downtime and maintenance costs, and guarantees stable turbocharger operation. Please provide turbocharger brand, model, flange specifications and part number before ordering to confirm compatibility.

Function of Marine Turbocharger Turbine Casing Flange Spare Parts

Exhaust Inlet Sealing & Structural Connection in Turbine Stage

Turbine casing flanges serve as the critical mounting and sealing interface of turbocharger turbine housing. High‑temperature exhaust gas flows into turbine housing through this flange joint, connecting exhaust manifold and turbine casing. Surface flatness, bolt hole distribution and inner runner geometry directly determine exhaust sealing performance and prevent hot gas leakage of the turbocharger unit.

Role in Combustion Efficiency

Reliable exhaust sealing maintains stable turbine inlet pressure and consistent air‑fuel mixing inside engine cylinders. Precisely machined turbine casing flanges help preserve turbocharger working efficiency across full engine operating range, supporting designed power output and fuel combustion characteristics during extended voyages.

Materials for Marine Engine Turbine Casing Flange Components

Heat‑Resistant Cast Alloy and Stainless Steel Options

Turbine casing flanges are available in two primary material configurations. High‑strength heat‑resistant cast alloy variants are produced through precision casting, suitable for standard marine continuous operating conditions. Corrosion‑resistant stainless steel versions are manufactured for vessels operating in humid or salt‑laden marine environments with sustained high exhaust temperature impact.

Machining Tolerances and Surface Finish

Each turbine casing flange undergoes 5‑axis CNC finish machining to form accurate mating faces, bolt holes and flow passages. Dimensional tolerances are controlled within 0.008 mm, and surface finish specifications follow marine turbocharger OEM drawings. These tolerances support perfect alignment with turbine casing and exhaust manifold assembly.

Compatible Turbocharger Models

Supported Brand Series

Additional Turbocharger Spare Parts

Alongside turbine casing flanges, complementary components for the same turbocharger series are available, including turbine wheels, compressor impellers, nozzle rings, compressor diffusers, bearing bushes, thrust bearings, floating bearings, shaft seal rings, rotor shafts, bearing housings, wastegate valves, gas outlet flanges, seal bushes, insert pieces, turbine shafts, repair kits, cartridges, turbine casings, and slide bearings.

Quality Control and Certification for Marine Turbine Casing Flanges

Inspection Procedures Before Dispatch

Each production batch undergoes ultrasonic flaw detection, dimensional verification, and surface finish inspection. Inspection records are archived per batch and can be provided to enterprise customers upon request.

Classification Society Compliance

Turbine casing flanges are supplied with CCS Type Approval documentation where required. These documents support vessel classification surveys and dry‑docking audits for ship owners and marine service companies operating under international maritime regulations.

Applications for Marine Turbocharger Turbine Casing Flange Replacements

Main Propulsion Turbocharger Overhauls

Turbine casing flanges are routinely inspected and replaced during major turbocharger overhauls on main propulsion engines. Long‑term high‑temperature thermal cycling, surface oxidation and bolt‑seat damage may cause flange deformation and exhaust gas leakage, disturbing turbine inlet pressure and affecting engine thermal balance. Replacement turbine casing flanges restore turbine‑side connection assembly to original design specifications.

Auxiliary Engine Maintenance Programs

Auxiliary generator turbochargers also require periodic turbine casing flange inspection, particularly for vessels operating in dusty port environments or coastal routes with high airborne salt content. Scheduled replacement supports uninterrupted auxiliary power during port stays and at‑sea operations.

FAQ About Marine Turbocharger Turbine Casing Flange

Which turbocharger brands are compatible with these turbine casing flanges?

Customers can confirm compatibility by providing the turbocharger model and part number from the equipment manual.

Are CCS certification documents available with each order?

CCS Type Approval certificates can be provided for applicable model ranges. Please specify certification requirements at the time of inquiry so that the correct documentation set is prepared before shipment.

What is the typical lead time for turbine casing flange orders?

Standard catalog models are held in stock and can be dispatched within 7 to 10 working days after order confirmation. Custom‑machined variants require additional production time based on drawing review and material preparation schedules.

Can turbine casing flanges be manufactured from customer‑supplied drawings?

Yes, turbine casing flanges can be produced according to customer technical drawings or sample parts. Drawing validation and material confirmation are completed before production begins to ensure dimensional and functional matching.
