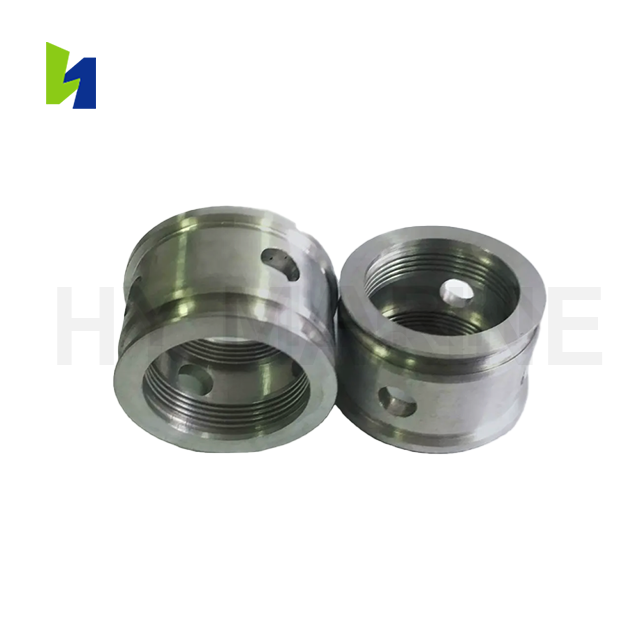

Seal bush is a precision sealing‑support component for marine turbochargers. Made of wear‑resistant high‑temperature alloy, it plays key roles in oil‑gas isolation and shaft auxiliary support. With precise dimensional tolerance and good thermal stability, it fits routine servicing, shipyard overhaul and fault repair, adapting to harsh high‑speed and high‑temperature marine operating conditions.

A properly matched seal bush effectively prevents oil leakage and gas leakage, reduces shaft wear and vibration, cuts equipment downtime and maintenance costs, and maintains reliable turbocharger operation. Please provide turbocharger brand, model, bush specifications and part number before ordering to confirm compatibility.

Function of Marine Turbocharger Seal Bush Spare Parts

Lubricant & Gas Isolation in Turbocharger Bearing System

Seal bushes serve as the key sealing component inside the turbocharger bearing housing. While the rotor shaft runs at ultra‑high speed, the seal bush separates lubricating oil from intake and exhaust gas passages. Its inner clearance and surface precision prevent oil leakage and gas blow‑by. The dimensional accuracy of seal bush directly influences oil‑gas isolation performance and service life of the turbocharger unit.

Role in Combustion Efficiency

Effective oil‑gas isolation contributes to clean cylinder combustion and stable boost pressure inside engine cylinders. Properly fitted seal bushes help maintain turbocharger working condition across the full engine operating range, supporting designed power output and fuel combustion characteristics during extended voyages.

Materials for Marine Engine Seal Bush Components

Tin Bronze and Anti‑wear Alloy Options

Seal bushes are available in two primary material configurations. High‑strength tin bronze variants are produced through precision casting, suitable for standard marine continuous operating conditions. Reinforced anti‑wear alloy versions are manufactured for vessels operating in humid or salt‑laden intake environments with frequent load fluctuation.

Machining Tolerances and Surface Finish

Each seal bush undergoes 5‑axis CNC finish machining to form precise inner bore and outer mounting profiles. Dimensional tolerances are controlled within 0.008 mm, and surface finish specifications follow marine turbocharger OEM drawings. These tolerances support accurate alignment with rotor shaft and bearing housing bore.

Compatible Turbocharger Models

Supported Brand Series

Additional Turbocharger Spare Parts

Alongside seal bushes, complementary components for the same turbocharger series are available, including turbine wheels, compressor impellers, nozzle rings, compressor diffusers, bearing bushes, thrust bearings, floating bearings, shaft seal rings, rotor shafts, bearing housings, wastegate valves, gas outlet flanges, insert pieces, turbine shafts, repair kits, cartridges, turbine casings, and slide bearings.

Quality Control and Certification for Marine Seal Bushes

Inspection Procedures Before Dispatch

Each production batch undergoes ultrasonic flaw detection, dimensional verification, and surface finish inspection. Inspection records are archived per batch and can be provided to enterprise customers upon request.

Classification Society Compliance

Seal bushes are supplied with CCS Type Approval documentation where required. These documents support vessel classification surveys and dry‑docking audits for ship owners and marine service companies operating under international maritime regulations.

Applications for Marine Turbocharger Seal Bush Replacements

Main Propulsion Turbocharger Overhauls

Seal bushes are routinely inspected and replaced during major turbocharger overhauls on main propulsion engines. Long‑term high‑speed friction and media corrosion can cause inner bore wear and clearance enlargement, resulting in oil leakage or gas blow‑by, affecting engine thermal balance. Replacement seal bushes restore the oil‑gas sealing stage to original design specifications.

Auxiliary Engine Maintenance Programs

Auxiliary generator turbochargers also require periodic seal bush inspection, particularly for vessels operating in dusty port environments or coastal routes with high airborne salt content. Scheduled replacement supports uninterrupted auxiliary power during port stays and at‑sea operations.

FAQ About Marine Turbocharger Seal Bush

Which turbocharger brands are compatible with these seal bushes?

Customers can confirm compatibility by providing the turbocharger model and part number from the equipment manual.

Are CCS certification documents available with each order?

CCS Type Approval certificates can be provided for applicable model ranges. Please specify certification requirements at the time of inquiry so that the correct documentation set is prepared before shipment.

What is the typical lead time for seal bush orders?

Standard catalog models are held in stock and can be dispatched within 7 to 10 working days after order confirmation. Custom‑machined variants require additional production time based on drawing review and material preparation schedules.

Can seal bushes be manufactured from customer‑supplied drawings?

Yes, seal bushes can be produced according to customer technical drawings or sample parts. Drawing validation and material confirmation are completed before production begins to ensure dimensional and functional matching.
