| Quantity: | |
|---|---|

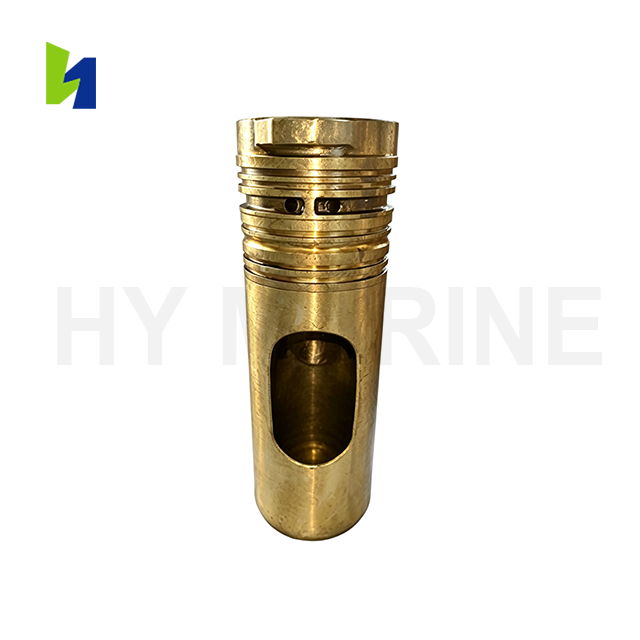

Exhaust valve cage Marine Diesel Engine Spare Parts is a critical core valve assembly component for marine diesel engines. Made of high-quality heat-resistant and corrosion-resistant materials, it holds the exhaust valve assembly and maintains stable valve movement during high-temperature exhaust processes. It features precise dimensional accuracy, stable structural performance and excellent fatigue resistance, suitable for routine servicing, shipyard overhaul and fault repair under marine harsh working conditions.
A well-matched exhaust valve cage stabilizes engine exhaust timing, prevents valve jamming and gas leakage, reduces component failure risks and equipment downtime, and ensures efficient and reliable operation of marine diesel engine units.
Please provide equipment model, specifications and part number before ordering to confirm compatibility.
EL30 Exhaust Valve Cage | Marine Main Engine Parts
The EL30 Exhaust Valve Cage is a core high-temperature component specially designed for Hanshin EL30 series marine main engines. Installed inside the cylinder head, this valve cage acts as the precision housing for the exhaust valve assembly. It provides accurate positioning and stable support for the exhaust valve spindle, valve seat and related valve train parts. It bears high exhaust temperature, gas pressure and thermal shock during engine combustion and exhaust cycles, maintaining correct valve movement stroke and reliable sealing. Damaged exhaust valve cage will cause valve misalignment, gas leakage, thermal deformation and power loss. Replacing with standard EL30 Exhaust Valve Cage restores original exhaust system precision and guarantees reliable continuous running of marine main engines.
Working under harsh marine operating conditions including long-time full-load continuous operation, frequent thermal cycling, high-temperature exhaust gas erosion and ship salt-fog corrosion, the exhaust valve cage will gradually produce surface ablation, thermal fatigue cracking and mating surface wear after long service hours. Failed valve cage triggers blow-by gas leakage, increased fuel consumption and accelerated damage to exhaust valve, valve seat and cylinder head. Regular inspection and replacement of exhaust valve cage are essential maintenance items for Hanshin EL30 engine overhaul and dry-dock repair projects.
This EL30 Exhaust Valve Cage adopts optimized heat-resistant alloy casting structure with excellent thermal conductivity and high-temperature mechanical strength, effectively resisting thermal fatigue cracking under alternating hot-cold cycles. Precision machined inner bore and sealing surfaces ensure perfect fitting with exhaust valve assembly, maintaining stable valve guiding and gas sealing performance under variable load working conditions.
With outstanding high-temperature corrosion resistance and thermal stability, the valve cage adapts to frequent start-stop and long-term heavy-load operation of marine main engines. It effectively reduces exhaust gas leakage, abnormal thermal stress and component failure rate, stabilizes engine combustion efficiency, lowers daily maintenance costs and greatly improves the long-cycle operational safety and reliability of Hanshin EL30 marine diesel engines.
The EL30 Exhaust Valve Cage is manufactured from high-grade heat-resistant alloy, specially customized for the high-temperature and high-pressure exhaust environment of Hanshin EL30 marine main engines. Precision casting process eliminates internal porosity and structural defects. Multiple stress relief treatments remove residual casting stress to ensure long-term dimensional stability without deformation. Key guiding and sealing surfaces adopt fine machining and surface finishing process to improve high-temperature erosion resistance. The whole manufacturing process strictly complies with Hanshin OEM technical requirements and universal marine diesel industry standards.
Quantified Marine-Grade Performance Parameters
Parameter | Specification | Test & Implementation Standard |
Core Material | Heat-resistant alloy | Raw material spectrum inspection |
Surface Treatment | Precision machining & surface finishing | Surface finish & flatness inspection |
Dimensional Tolerance | OEM-level precision matching tolerance | CMM full dimensional inspection |
Mechanical Performance | Thermal shock resistant, anti-fatigue, erosion proof | Thermal cycle fatigue test |
Working Temperature Resistance | Adapt to high-temperature exhaust environment | High-temperature structural stability test |
Service Feature | Gas-tight sealing, anti-ablation, stable guidance | Marine long-cycle operation simulation test |
Compliance Standard | Universal marine industrial manufacturing specifications | Hanshin OEM & marine diesel industry norms |
All EL30 Exhaust Valve Cage are manufactured strictly in accordance with Hanshin OEM engineering drawings and marine exhaust valve component standards. Every workpiece undergoes raw material verification, alloy casting, heat treatment calibration, precision machining and surface finishing. Key inner guiding bores and sealing surfaces geometric tolerance are fully controlled to ensure perfect coordination with exhaust valve spindle, valve seat and cylinder head assembly.
Each finished exhaust valve cage passes strict pre-delivery full inspection, including dimensional accuracy detection, hardness testing, surface defect screening and assembly matching test. All technical parameters fully match original equipment standards, supporting direct drop-in replacement without secondary processing, effectively improving main engine overhaul quality and post-maintenance operational stability.
MAIN ENGINE | MAN B&W | S26MC,L/S35MC,L/S42MC,L/S50MC,L/S60MC,L/S70MC,L/S80MC,L/S90MC,S46MC-C,S50MC-C,S60MC-C,S70MC-C,S80MC-C,S90MC-C,K90MC-C,K98MC-C,K/L45GF(CA),55GF(CA),67GF(CA),80GF(CA),90GF(CA) |
WARTSILA | 6L20,9L20,8L32,R22,R32,L20,L32 | |
PIELSTICK | PC2-2,PC2-5,PC2-5L,PC2-5V,PC2-6,PA4,PA5,PA6 | |
HANSHIN | EL30-44,ELS-35,44,LH-28G,LU24-54,LUN28AR(G),LUS24-58,LF46-58 | |
NIIGATA | 16HS,16X,18CX,19HX,20AX,25BX,25CX,26AFTE,26KGHS,28AFTE,28BX,28KGHS,31EZ,31X,32CLX,34AFTE | |
SULZER | RTA38,RTA48,RTA52,RTA58,RTA62,RTA68,RTA72,RTA76,RTA84,RL(A/B)56,RL(A/B)66,RL(A/B)76, RL(A/B)90,RND68,RND76 | |
AKASAKA | A31,A34,A38,A41,A45,AH25,AH27,AH28,AH30,AH38,AH40,K28,K31,DM28FD,DM38FD,DM40FD,DM51SS | |
MITSUBISHI | UEC33LSE,UEC37LA,UEC45LA,UEC50LS,UEC52LA,UEC52LS,UEC60LS,UET45/75C,UET45/80D, UET52/90D,UET52/105H | |
AUX.ENGINE | MITSUBISHI | S6A,S6B,S6R,S6N,S16N,S16R,S12R,SA2 |
MAN B&W | 16/24,20/27,21/31,23/30,25/33,28/32,32/40,48/60,58/64 | |
YANMAR | HAL,KL,KDL,KFL,RAL,MAL,S165,S185,M200,M220,T220,T240,T260,Z280,N165,N18,N21,N165,N260,N280, N330,NY16,EY18,EY22,EY26,4CHL,6CHL | |
DAIHATSU | DK20,DK26,DK28,DK32,DL16,DL19,DL20,DL22,DL24,DL26,DL28,DL32,DS18,DS19,DS22,DS26,DS28,DS32, DS40,PK14,PK16,PL24,PL26,PS18,PS20,PS22,PS26,PS30 |
We supply full-series matching spare parts for Hanshin EL30 engine overhaul, including exhaust valve spindle, valve seat, valve spring, valve retainer, sealing ring and complete exhaust valve overhaul kits, providing one-stop procurement solutions for shipyards, shipping companies and marine engine maintenance suppliers.
Each batch of EL30 Exhaust Valve Cage undergoes full-process professional inspection and performance screening, including raw material spectrum analysis, metallographic inspection, dimensional calibration, hardness testing, surface defect detection and thermal shock test. All inspection records are archived completely for customer review and dry-dock audit.
Manufactured in strict compliance with universal marine diesel industry norms and Hanshin OEM technical specifications, this exhaust valve cage meets the requirements of daily vessel navigation and engine overhaul projects, serving as reliable replacement spare parts for marine main engines.
The exhaust valve cage is a key high-temperature supporting component of Hanshin EL30 engine cylinder head system. Long-term high-temperature exhaust impact, thermal fatigue and gas erosion will cause surface ablation, microcracks and inner bore deformation. Replace the exhaust valve cage during major overhaul if gas leakage, surface cracking or obvious bore wear is detected. Installing new standard EL30 Exhaust Valve Cage restores precise valve guiding performance, optimizes exhaust efficiency and protects cylinder head and exhaust valve components from secondary damage.
Regular inspection of exhaust valve cage surface condition and inner bore clearance is an essential routine maintenance item for Hanshin EL30 marine main engines. For vessels with long-term continuous power operation, exhaust system parts are prone to thermal fatigue wear. Timely inspection and replacement can effectively avoid gas leakage, power attenuation and excessive fuel consumption, ensuring stable and safe operation of shipboard power equipment.
Which engine does this exhaust valve cage fit?
This exhaust valve cage is specially customized for Hanshin EL30 series marine main engines, also compatible with multiple mainstream marine main and auxiliary engine models listed above. Please provide complete engine model or original part number for accurate matching confirmation.
What is the delivery time?
Standard EL30 Exhaust Valve Cage are in stock with 7–10 working days fast delivery. Non-standard customized specifications support 7–15 working days production cycle.
Can you provide customized processing services?
Yes, we support OEM customization and non-standard processing according to customer drawings and samples. All customized products undergo full-dimensional inspection and thermal performance testing before shipment.
What is your warranty policy?
12-month warranty for material and manufacturing defects. We provide professional after-sales technical support including installation guidance and assembly parameter verification.
What is the MOQ and export packaging?
MOQ is 1 unit for in-stock products, with favorable bulk discount for fleet batch orders. Standard export packaging adopts anti-rust oil treatment, moisture-proof wrapping and solid plywood crating, adapting to long-distance ocean transportation and overseas storage.
