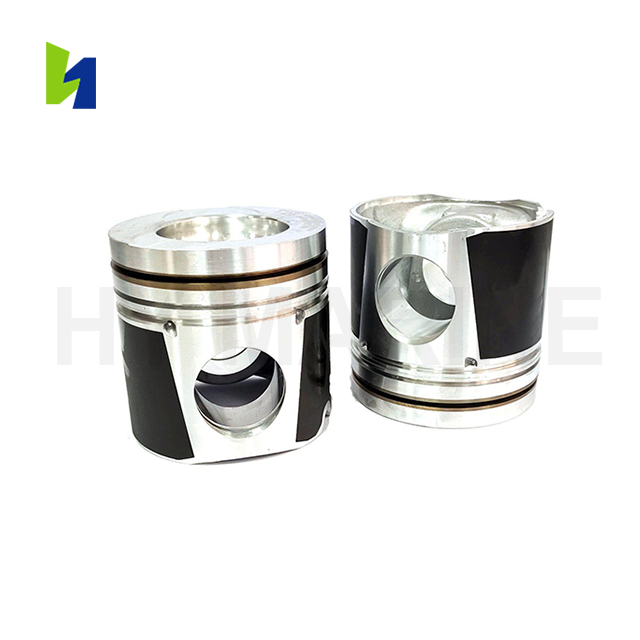

WEICHAI Engine Piston WD618 Marine Auxiliary Spare Parts is a critical core compression power component for marine WEICHAI WD618 auxiliary engines. Made of high‑quality wear‑resistant and high‑temperature resistant materials, it completes reciprocating compression movement and realizes efficient fuel combustion inside the cylinder. It features precise dimensional accuracy, stable structural performance and excellent fatigue resistance, suitable for routine servicing, shipyard overhaul and fault repair under marine harsh working conditions.
A well‑matched WEICHAI WD618 piston stabilizes engine compression efficiency, prevents insufficient power and combustion abnormality, reduces component failure risks and equipment downtime, and ensures efficient and reliable operation of marine auxiliary engine units. Please provide equipment model, specifications and part number before ordering to confirm compatibility.
The WEICHAI WD618 piston is a precision replacement spare part for WEICHAI WD618 marine diesel engines and auxiliary generator sets. As one of the primary moving components inside the cylinder assembly, the piston converts combustion pressure into mechanical power and transfers the resulting force through the connecting rod to the crankshaft.
During continuous marine operation, the piston is exposed to high combustion temperature, repeated pressure cycles, lateral thrust, lubrication conditions and mechanical vibration. A worn, cracked, deformed or incorrectly matched piston can lead to poor compression, excessive oil consumption, abnormal combustion, blow-by, increased exhaust smoke, reduced engine output and secondary damage to the cylinder liner or connecting-rod assembly.
A correctly matched WEICHAI WD618 replacement piston helps restore the piston-cylinder running relationship and supports reliable power output from marine auxiliary engines. It is suitable for planned overhauls, dry-dock maintenance, emergency repair and replacement of pistons that have reached their service limit, subject to inspection and part-number confirmation.
Important: A piston is not automatically supplied as a complete piston assembly. Piston rings, piston pin, circlips and connecting-rod components may be supplied separately or as a complete kit depending on the quotation. Please confirm the required configuration before ordering.
The piston receives the pressure generated by fuel combustion and transfers this force through the piston pin and connecting rod to the crankshaft. Its strength, geometry and weight directly affect the stable operation of the reciprocating engine mechanism.
Together with the piston rings and cylinder liner, the piston helps maintain compression in the combustion chamber. A suitable piston and correctly fitted ring set help reduce combustion-gas leakage, improve compression retention and support stable engine starting and operation.
The piston is exposed to high combustion temperature and must transfer heat through the piston crown, skirt, rings, cylinder liner and lubricating system. Correct piston design and clearance help control thermal expansion during changing engine loads.
The piston skirt guides the piston inside the cylinder liner and helps control lateral movement. Correct skirt dimensions and running clearance help reduce piston slap, uneven wear and scuffing during continuous operation.
A properly matched piston helps distribute combustion and side loads across the piston-cylinder assembly. It supports the service life of related components, including piston rings, cylinder liners, piston pins, connecting rods and crankshaft bearings.
When the piston-cylinder assembly is in good condition, the engine can maintain more consistent compression, combustion and power output. This supports reliable onboard electricity for navigation equipment, communication systems, pumps, lighting and other auxiliary services.
The piston is a core component of the engine's combustion and power-conversion system. It works together with the cylinder liner, piston rings, piston pin, connecting rod, fuel-injection system, valves and lubricating system throughout every operating cycle.
A serviceable WEICHAI WD618 piston helps support:
● Stable cylinder compression;
● Reliable engine starting;
● Efficient transfer of combustion force to the crankshaft;
● Consistent power output from the auxiliary engine;
● Reduced combustion-gas blow-by;
● Controlled lubricating-oil consumption;
● Reduced risk of piston slap and skirt scuffing;
● Stable operation under variable electrical load;
● Lower risk of secondary cylinder-liner and connecting-rod damage;
● Reliable generator-set operation during port and offshore service.
The final engine performance depends on the condition of the complete piston-cylinder assembly, fuel system, lubrication system, cooling system, valve train and crank mechanism. A piston should be replaced only after the cause of wear or damage has been identified.
The piston body is manufactured according to the applicable engine configuration, drawing or original part-number requirement. The selected material and manufacturing process are intended to provide the required balance of strength, thermal stability, wear resistance and dimensional accuracy for the application.
The piston crown is exposed directly to combustion temperature and pressure. Its profile and surface condition influence the combustion-chamber geometry, fuel-spray clearance and heat distribution. The crown should be checked for correct design, visible defects and compatibility with the applicable cylinder-head and injector configuration.
The piston ring grooves are machined to accommodate the specified compression rings and oil-control rings. Correct groove width, depth and surface condition help the rings move correctly, maintain gas sealing and control lubricating oil.
The piston skirt guides the piston inside the cylinder liner. Its external dimensions and surface finish are important for controlling running clearance, lateral movement and resistance to scuffing under changing load conditions.
The piston-pin bore and pin bosses transfer combustion force to the connecting rod. Their alignment, diameter and surface condition must match the specified piston pin and connecting-rod small end.
The piston design is intended to withstand repeated thermal cycling, combustion pressure and reciprocating loads. Actual material grade, heat-treatment method, coating, hardness and dimensional specifications must be confirmed against the applicable part number or technical drawing.
Specification note: Do not assume piston material, ring-groove dimensions, compression height, crown profile or pin diameter from the WD618 engine family alone. These details may vary by configuration and must be verified before supply.
The WEICHAI WD618 piston is inspected according to the applicable product drawing, original part-number requirements and agreed quality criteria. Inspection items may include:
● Overall piston height;
● Piston diameter and skirt profile;
● Compression height;
● Crown profile and combustion-bowl geometry, where applicable;
● Ring-groove width, depth and side clearance;
● Piston-pin bore diameter and alignment;
● Pin-boss dimensions;
● Skirt roundness and ovality;
● Surface finish of the skirt and ring grooves;
● Weight consistency within the agreed batch requirement;
● Burrs, cracks, casting defects, scratches and visible machining damage.
Correct piston-to-liner clearance is essential. The cylinder liner should be measured for bore size, taper, ovality and wear before a replacement piston is installed. The piston and liner should be evaluated as a matched running set according to the applicable maintenance procedure.
The product is intended for WEICHAI WD618 marine diesel engines and marine auxiliary-engine applications, subject to exact part-number and configuration confirmation.
It may be used for maintenance and overhaul projects involving:
● WEICHAI WD618 marine auxiliary engines;
● WEICHAI WD618-based marine generator sets;
● WD618 diesel power units used for onboard auxiliary services;
● Compatible WD618 cylinder assemblies requiring piston replacement.
Different WD618 configurations may use different piston crowns, ring packages, compression heights, pin dimensions, weights or cylinder-liner combinations. Please provide the following information before ordering:
● Exact engine model and rated configuration;
● Engine serial number or nameplate photo;
● Original piston part number;
● Cylinder-liner or overhaul-kit part number, if available;
● Piston crown and skirt photos;
● Piston diameter, pin diameter and key dimensions;
● Required quantity;
● Whether the requirement is for a piston only or a complete piston kit.
Engine-family compatibility is not sufficient for final confirmation. The replacement piston must match the cylinder liner, piston rings, piston pin, connecting rod and combustion-system configuration.
Depending on the customer requirement, the WEICHAI WD618 piston may be evaluated in the following configurations:
A replacement piston body supplied without piston rings, piston pin or circlips. This configuration is suitable when the related components have been inspected and remain within the applicable service limits.
A piston supplied with matching compression rings and oil-control rings, subject to part-number confirmation. Ring selection must match the piston grooves and cylinder-liner specification.
A kit may include the piston, piston-ring set, piston pin and circlips. The exact contents must be stated in the quotation because kit composition varies by engine configuration and customer requirement.
For a broader maintenance project, piston-related parts may be combined with cylinder liners, ring sets, gasket sets, bearings and other overhaul components after technical matching.
For WD618 marine auxiliary-engine repair and overhaul projects, we can also support inquiries for:
● Piston rings and complete piston kits;
● Cylinder liners and liner sealing components;
● Piston pins and circlips;
● Connecting-rod assemblies and bearing bushes;
● Main bearing bushes;
● Cylinder-head components;
● Inlet and exhaust valves;
● Valve guides and valve-seat components;
● Fuel injectors and injector nozzles;
● Fuel-injection pump components;
● Fuel filters, oil filters and water filters;
● Overhaul gasket sets and sealing kits;
● Turbocharger components;
● Other WEICHAI marine diesel-engine maintenance parts.
Consolidated supply can be evaluated when several components are required for a complete engine overhaul or dry-dock maintenance project.
The applicable inspection plan for a WEICHAI WD618 piston may include:
1. Raw-material and component verification;
2. Visual inspection of the piston crown, skirt, ring grooves and pin bore;
3. Dimensional inspection of critical installation features;
4. Inspection of skirt diameter, ovality and roundness;
5. Ring-groove and piston-pin-bore measurement;
6. Weight and balance inspection according to the agreed requirement;
7. Surface-finish and burr inspection;
8. Crack, defect or integrity inspection where applicable;
9. Final quantity, labeling and packing inspection.
For an engine-overhaul order, inspection items and acceptance values should be agreed according to the original part number, technical drawing, sample or customer specification. Quality records may be organized for enterprise customers and vessel-maintenance documentation when required.
Inspection reports, material documentation or other quality records may be available according to the product configuration and order requirements. If classification-society or project-specific documentation is required, please specify the documents before quotation so availability and applicability can be checked.
During long-term operation, the piston may develop crown deposits, skirt scuffing, ring-groove wear, pin-bore wear, cracks, deformation or thermal damage. These conditions can reduce compression and affect the reliability of the auxiliary engine.
Replacing the piston during a planned overhaul helps restore the specified relationship between the piston, piston rings and cylinder liner. Before assembly, the liner, rings, piston pin, connecting rod and crank mechanism should be measured and inspected.
WEICHAI WD618 auxiliary generator sets may operate for extended periods and experience frequent changes in electrical load. A properly matched piston supports stable compression and combustion, helping the generator maintain dependable power for onboard equipment.
Piston replacement should be considered when inspection identifies damage or when measured dimensions exceed the applicable service limits. The root cause of failure should also be corrected to avoid repeated damage to the replacement component.
Piston and cylinder inspection can be included in planned dry-dock maintenance or a scheduled engine overhaul. Early identification of ring wear, liner wear, piston scuffing or combustion-related damage may help prevent more extensive repairs to the cylinder block and crankcase.
For vessels that require rapid maintenance response, keeping matched piston and ring-set options in spare-parts stock can reduce downtime. Stock selection should be based on the vessel's actual engine model, serial number, original part number and maintenance plan.
A piston-cylinder assembly may require inspection when one or more of the following conditions are observed:
● Reduced engine power;
● Difficult starting or unstable running;
● Low compression in one cylinder;
● Excessive crankcase blow-by;
● Increased lubricating-oil consumption;
● Blue or abnormal exhaust smoke;
● Abnormal combustion noise;
● Piston slap or knocking noise;
● Elevated exhaust temperature in one cylinder;
● Excessive carbon deposits on the piston crown;
● Scuffed or overheated piston skirt;
● Broken, stuck or worn piston rings;
● Oil contamination caused by fuel leakage or combustion-gas blow-by;
● Visible cracks, deformation or scoring during dismantling.
These symptoms can also be caused by injector faults, incorrect injection timing, poor lubrication, cooling-system problems, cylinder-liner wear, valve leakage or connecting-rod damage. A qualified technician should complete a full diagnosis before ordering replacement parts.
To help protect piston performance during installation and service:
● Confirm the piston part number and engine configuration before assembly;
● Measure the cylinder liner for bore size, taper, ovality and wear;
● Check piston-to-liner clearance according to the applicable specification;
● Confirm ring-groove dimensions and piston-ring compatibility;
● Inspect the piston pin, circlips and connecting-rod small end;
● Clean the piston, liner and crankcase before assembly;
● Install piston rings with the correct orientation and end-gap arrangement;
● Use clean, suitable lubricating oil during assembly;
● Follow the specified connecting-rod and bearing installation procedure;
● Check injector condition, injection timing, lubrication and cooling before commissioning;
● Perform appropriate checks after installation and initial running-in;
● Investigate the root cause of any previous piston failure before fitting a new part.
Final installation, measurement and engine commissioning should be completed by qualified marine-engine maintenance personnel.
Please send the following details so we can confirm the correct WEICHAI WD618 piston:
● Engine brand and exact model;
● Engine serial number or nameplate image;
● Original piston part number;
● Cylinder-liner part number, if available;
● Piston-ring part number, if available;
● Original piston photos and key dimensions;
● Required quantity;
● Piston only, piston with rings or complete piston kit;
● New replacement or complete overhaul requirement;
● Delivery port or destination country;
● Required inspection report, material certificate or project documentation;
● Packaging, labeling and shipping requirements.
Providing the original piston part number or a clear nameplate photo is the preferred way to reduce compatibility risk and prepare an accurate quotation.
The piston receives combustion pressure, transfers force to the connecting rod and crankshaft, supports compression sealing with the piston rings and guides reciprocating movement inside the cylinder liner.
Not necessarily. This listing is for a replacement piston unless the quotation specifically states that piston rings, piston pin, circlips or other components are included. Please confirm the required supply configuration before ordering.
The product is intended for WEICHAI WD618 marine auxiliary-engine applications. Exact compatibility depends on the piston part number, cylinder-liner specification, ring package, piston pin and engine configuration. Please provide the engine nameplate or original part number for confirmation.
Piston rings, piston pins, circlips and complete piston kits may be available depending on the required configuration. Please specify whether you need a piston only, a piston-and-ring set or a complete piston kit.
Yes. A technical drawing, original part number, physical sample, nameplate image or clear dimensional information can be used for technical evaluation. Final confirmation should include crown profile, skirt dimensions, ring-groove details and piston-pin requirements.
Not always. The cylinder liner should be measured and inspected before piston replacement. If bore wear, taper, ovality, scoring or clearance exceeds the applicable service limits, a liner replacement or complete cylinder overhaul may be required.
For standard configurations, the indicative lead time is approximately 7–10 working days after order confirmation, subject to stock status, quantity, inspection requirements and shipping arrangements. Customized or non-standard items may require additional production time. Please confirm the current lead time before ordering.
Inspection records or quality documentation may be arranged according to the product configuration and customer requirements. Please specify the required report or certificate before quotation.
Possible contributing factors include poor lubrication, overheating, injector malfunction, incorrect injection timing, excessive cylinder-liner wear, contaminated oil, overloading, inadequate cooling or incorrect piston-to-liner clearance. The failure cause should be investigated before fitting a replacement piston.
The preferred identification method is the original piston part number or the engine nameplate. If these are unavailable, provide the engine serial number, piston photos, dimensions, cylinder-liner information and piston-ring details for review.
● Marine auxiliary-engine application support;
● Part-number and cylinder-assembly matching before order confirmation;
● Support for piston-only, piston-ring and complete piston-kit inquiries;
● Inspection options based on the agreed technical specification;
● Support for drawings, samples and non-standard requirements;
● Related WEICHAI marine engine parts for consolidated purchasing;
● Export packing, labeling and documentation support;
● Technical communication for vessel repair, dry-dock and generator-set overhaul projects.
Send us your WEICHAI WD618 engine model, original piston or cylinder-liner part number, required quantity and delivery destination. We will review the application, confirm the applicable piston configuration and provide a quotation with available lead-time and inspection-document options.
