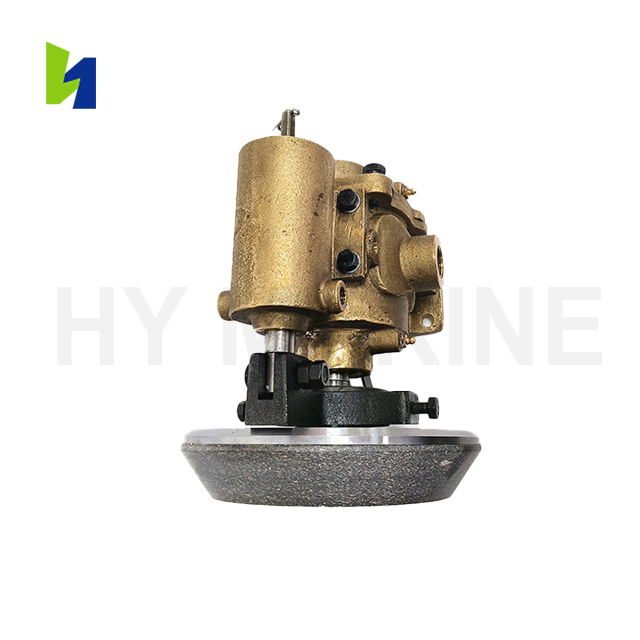

Marine VACCUM PUMP FB2V-250-3 Ship Pump Engine Parts

VACUUM PUMP NANIWA FB2V‑250‑3 Ship Pump Engine Parts is a critical core vacuum generating component for marine systems. Made of high‑quality wear‑resistant and corrosion‑resistant materials, it creates stable vacuum environment and guarantees normal medium conveying for onboard equipment. It features precise dimensional accuracy, stable structural performance and excellent fatigue resistance, suitable for routine servicing, shipyard overhaul and fault repair under marine harsh working conditions.

A well‑matched Naniwa FB2V‑250‑3 vacuum pump stabilizes system vacuum performance, prevents vacuum loss and operation failure, reduces component failure risks and equipment downtime, and ensures efficient and reliable operation of marine pump units. Please provide equipment model, specifications and part number before ordering to confirm compatibility.

Function of VACCUM PUMP NANIWA FB2V‑250‑3 Ship Pump Engine Parts

Vacuum Suction & Priming Function for NANIWA FB2V‑250‑3 Marine Vacuum Pump

NANIWA FB2V‑250‑3 vacuum pump is a complete marine self‑priming vacuum pump unit widely installed on ship bilge, ballast and liquid transfer system. It generates negative pressure to realize fast pump priming, evacuates air inside pipeline and pump casing, enables main pump to establish normal suction condition for bilge water, ballast water and other medium transportation. The unit consists of bronze pump housing, impeller assembly, mechanical seal, shaft assembly, driving friction clutch and regulating valve components. Long‑term seawater‑medium scouring, solid particle abrasion, engine‑room vibration and marine salt‑fog corrosion will cause impeller wear, sealing face damage, clutch friction block aging, valve stuck and internal leakage. Defective vacuum pump results in insufficient vacuum degree, poor self‑priming capacity, delayed liquid suction, abnormal noise and pump failure. Replacing brand‑new NANIWA FB2V‑250‑3 vacuum pump restores stable vacuum‑generating performance and reliable priming function for ship liquid‑handling system.

Role in Vessel Auxiliary‑System Operation

The FB2V‑250‑3 vacuum pump undertakes core pre‑priming work for bilge and ballast pump sets. It quickly removes air from suction pipeline, guarantees continuous medium suction under varying liquid‑level condition during sea navigation and port operation. Stable vacuum performance ensures effective discharge of bilge water and adjustment of ballast tank water volume, maintains ship stability. It avoids pump idling, cavitation damage and unplanned auxiliary‑system shutdown, protects subsequent main pump and pipeline equipment, supports safe navigation of ocean‑going vessels.

Materials for NANIWA FB2V‑250‑3 Vacuum Pump Components

Bronze Pump Casing, Anti‑Corrosion Impeller, Stainless Steel Shaft & Marine‑Grade Sealing Elements

Pump casing adopts high‑strength bronze alloy, good seawater corrosion resistance and anti‑erosion property, adapting to bilge mixed‑medium environmentMade-in-Ch.... Impeller is made of anti‑abrasion copper alloy, resisting particle scouring. Rotor shaft uses stainless steel material; mechanical‑seal friction pairs adopt silicon‑carbide‑carbon matching set. O‑rings and gaskets adopt oil‑resistant & seawater‑resistant elastomer. Friction clutch components adopt heat‑resistant friction composite material. All material specifications comply with NANIWA original OEM technical standards.

Machining Tolerances and Surface Finish

Each NANIWA FB2V‑250‑3 vacuum pump is strictly manufactured according to OEM drawing specifications. Impeller profile, shaft concentricity, sealing‑face flatness, clutch mounting dimension and valve assembly tolerance are fully inspected. Vacuum‑tightness test and self‑priming performance test are completed before delivery. Standard mounting foot, flange port and driving interface support direct drop‑in installation without on‑site machining or secondary modification.

Compatible Marine Equipment Models

Supported NANIWA Pump Series

NANIWA FB2V‑250‑3 marine vacuum priming pump

Compatible reference: FB2V‑200‑2, FB2V‑300‑4 and other FB2V series vacuum pumps

Multi‑Brand Compatible Models

Additional Marine Spare Parts

Matching with NANIWA FB2V‑250‑3 vacuum pump, we supply full‑range spare parts for NANIWA pump series, oil separators, air compressors and turbocharger series, including mechanical seals, impellers, shaft sleeves, submerged bearings, friction blocks, pump casing gaskets, overhaul kits, centripetal pumps, bowl gaskets, disc stacks, piston rings, cylinder liners, turbine wheels, compressor impellers, nozzle rings, bearing bushes, thrust bearings and other marine accessories.

Quality Control and Certification for NANIWA FB2V‑250‑3 Vacuum Pump

Inspection Procedures Before Dispatch

Each unit completes raw material verification, dimensional tolerance inspection, vacuum tightness test, self‑priming performance detection and running noise check. All inspection records are fully archived and can be provided for enterprise customer review and vessel dry‑dock audit.

Classification Society Compliance

NANIWA FB2V‑250‑3 vacuum pump can be supplied with CCS Type Approval documentation as required, satisfying international maritime standards for vessel classification survey and dry‑dock inspection.

Applications for NANIWA FB2V‑250‑3 Vacuum Pump Replacements

Bilge & Ballast Pump System Overhaul

Vacuum priming pump is key auxiliary equipment for ship bilge‑ballast system. Long‑term mixed‑medium scouring, particle abrasion and salt‑fog corrosion will lead to impeller wear, seal leakage and clutch slipping. Typical faults include insufficient vacuum, slow priming, abnormal noise and pump cannot build suction pressure. Installing brand‑new NANIWA FB2V‑250‑3 vacuum pump restores reliable vacuum‑generating capacity and original system operating performance.

Ship Auxiliary‑Machinery Daily Maintenance

FB2V‑250‑3 vacuum pump requires periodic inspection of sealing assembly, friction clutch and valve components. Especially for vessels sailing in coastal high‑salt‑fog zones and handling bilge water containing sediment impurities, timely replacement avoids secondary damage to main pump and pipeline, guarantees stable liquid transfer and safe vessel navigation.

FAQ About VACCUM PUMP NANIWA FB2V‑250‑3 Ship Pump Engine Parts

Which system fits this NANIWA FB2V‑250‑3 vacuum pump?

This vacuum pump is specially designed for NANIWA FB2V‑250‑3 marine bilge and ballast priming system, also compatible with partial FB2V series vacuum pump units. Please provide pump model or original part number for accurate compatibility confirmation.

Are CCS certification documents available with each order?

CCS Type Approval certificates can be offered according to customer requirements to support ship inspection and dry‑dock audit.

What is the typical lead time for NANIWA FB2V‑250‑3 vacuum pump orders?

Standard NANIWA FB2V‑250‑3 vacuum pumps are in stock and can be dispatched within 7‑10 working days after order confirmation. Non‑standard customized items need extra production cycle.

Can vacuum pumps and related spare parts be customized according to drawings or samples?

Yes, we support custom manufacturing according to customer technical drawings or physical samples. Strict vacuum‑performance test and full‑dimension inspection will be finished before delivery to guarantee assembly matching and stable operation.
