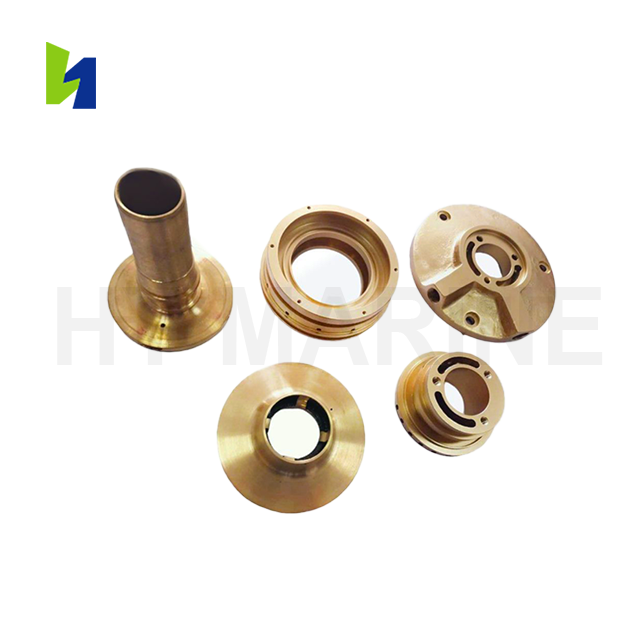

MOPX309 Marine Oil Purifier Water Distributor Spare Parts

MOPX309 Marine Oil Purifier Water Distributor Spare Parts is a critical core fluid distribution component for marine MOPX309 oil purifiers. Made of high-quality wear-resistant and corrosion-resistant materials, it ensures accurate water distribution and stable phase separation inside the purifier, maintaining standard oil-water purification performance. It features precise dimensional accuracy, stable structural performance and excellent fatigue resistance, suitable for routine servicing, shipyard overhaul and fault repair under marine harsh working conditions.

A well-matched water distributor stabilizes purifier operating efficiency, prevents water distribution disorder and purification failure, reduces component failure risks and equipment downtime, and ensures efficient and reliable operation of marine MOPX309 oil purifiers. Please provide equipment model, specifications and part number before ordering to confirm compatibility.

Function of MOPX309 Marine Oil Purifier Water Distributor Spare Parts

Operating‑Water Flow Distribution & Bowl Desludging Control for ALFA‑LAVAL MOPX309 Marine Oil Purifier

MOPX309 water distributor is the core fluid distribution component specially engineered for ALFA‑LAVAL MOPX309 marine fuel and lube oil purifier. Installed at the bowl lower operating‑water circuit, it accurately distributes opening water, closing water and displacement water for automatic sludge discharge cycle. It allocates hydraulic flow to drive operating slide, controls bowl bottom opening and closing, establishes stable water‑seal condition inside the bowl. Long‑term impact of operating water, scale deposition, marine salt‑fog corrosion and particle abrasion will cause flow channel blockage, orifice wear, surface pitting and internal leakage. Damaged water distributor triggers unstable water supply, incomplete sludge discharge, failure of bowl locking, frequent purifier alarms and poor oil‑water separation performance. Replacing with brand‑new MOPX309 water distributor restores precise hydraulic distribution and normal automatic desludging sequence of the separator unit.

Role in Vessel Oil‑Treatment System Operation

The water distributor undertakes accurate flow allocation for all bowl‑operating water circuits. It delivers quantitative opening water to trigger sludge discharge, feeds closing water to lock bowl bottom tightly, and supplies displacement water to avoid oil loss during desludging process. Stable hydraulic distribution maintains reliable water‑seal interface inside the bowl, guarantees continuous removal of water, sludge and solid contaminants from heavy fuel oil or lube oil. It supplies qualified clean oil for main engine and auxiliary engines during open‑sea navigation and port berthing, prevents purifier mis‑discharge, oil leakage and unplanned shutdown, protects high‑value engine equipment from contaminated oil damage.

Materials for MOPX309 Water Distributor Components

High‑Strength Anti‑Corrosion Cast Alloy, Wear‑Resistant Flow Channel & Marine‑Grade Sealing Gaskets

MOPX309 water distributor body adopts high‑density anti‑corrosion cast alloy, resisting long‑term washing of operating water, salt‑water erosion and scale corrosion. Precision‑machined flow orifices feature high wear resistance against tiny solid particles. Matching sealing gaskets adopt water‑resistant, aging‑resistant composite material, keeping tight sealing under variable hydraulic pressure and fluctuating marine ambient temperature. All material specifications comply with ALFA‑LAVAL MOPX309 OEM technical standards.

Machining Tolerances and Surface Finish

Each MOPX309 water distributor is strictly manufactured according to OEM drawing requirements. Flow channel routing, orifice aperture and position are precisely processed and fully inspected. Inner flow surfaces adopt fine finishing to reduce scale adhesion risk. Key mounting dimensions, sealing groove and thread tolerance are 100‑percent checked. Smooth mating surfaces eliminate assembly gaps and internal bypass leakage. Standard mounting interface supports direct drop‑in replacement without on‑site machining or modification.

Compatible Oil Separator Models

Supported ALFA‑LAVAL MOPX Series

ALFA‑LAVAL MOPX309 marine fuel & lube oil purifier

Compatible reference: MOPX310, MAPX309, MAPX310, MOPX207, MAPX207

Multi‑Brand Compatible Models

Additional Marine Spare Parts

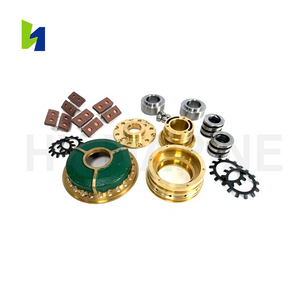

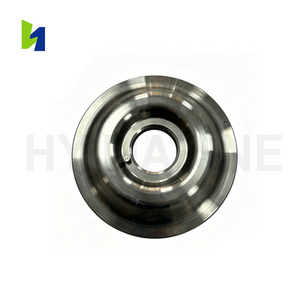

Matching with MOPX309 water distributor, we supply full‑range spare parts for ALFA‑LAVAL purifiers, SJ‑series oil separators, air compressors and turbocharger series, including friction pulley repair kits, centripetal pumps, purifier main cylinders, bowl gaskets, overhaul kits, disc stacks, operating slides, desludging valve assemblies, piston rings, cylinder liners, turbine wheels, compressor impellers, nozzle rings, bearing bushes, thrust bearings and other marine accessories.

Quality Control and Certification for MOPX309 Water Distributor

Inspection Procedures Before Dispatch

Each batch completes raw material verification, dimensional tolerance inspection, flow‑orifice calibration, hydraulic distribution test and sealing tightness test. All inspection records are fully archived and can be provided for enterprise customer review and vessel dry‑dock audit.

Classification Society Compliance

MOPX309 water distributor can be supplied with CCS Type Approval documentation as required, satisfying international maritime standards for vessel classification survey and dry‑dock inspection.

Applications for MOPX309 Water Distributor Replacements

Main Engine Fuel / Lube Oil Purifier Overhaul

Water distributor is a critical hydraulic wearing component for MOPX309 automatic‑desludging purifier. Long‑term water scouring, scale accumulation and orifice abrasion cause flow deviation, partial blockage and internal leakage. Typical faults include incomplete sludge discharge, bowl cannot lock reliably, frequent purifier alarm and degraded oil purification result. Installing brand‑new MOPX309 water distributor restores accurate hydraulic flow distribution and original separator working performance.

Auxiliary Engine Oil‑Treatment System Maintenance

MOPX309 oil purifiers for auxiliary engine oil processing require regular inspection of water distributor assembly. Especially for vessels sailing in coastal high‑salt‑fog zones and with poor‑quality feed water, timely replacement avoids secondary damage to operating slide and bowl assembly, guarantees stable oil‑water separation and safe vessel navigation.

FAQ About MOPX309 Marine Oil Purifier Water Distributor Spare Parts

Which purifier models fit this MOPX309 water distributor?

This water distributor is specially designed for ALFA‑LAVAL MOPX309 marine oil purifier, also compatible with partial MOPX / MAPX series separator units. Please provide equipment model or original part number for accurate compatibility confirmation.

Are CCS certification documents available with each order?

CCS Type Approval certificates can be offered according to customer requirements to support ship inspection and dry‑dock audit.

What is the typical lead time for MOPX309 water distributor orders?

Standard MOPX309 water distributors are in stock and can be dispatched within 7‑10 working days after order confirmation. Non‑standard customized items need extra production cycle.

Can water distributors be customized according to drawings or samples?

Yes, we support custom manufacturing according to customer technical drawings or physical samples. Strict hydraulic distribution performance test and full‑dimension inspection will be finished before delivery to guarantee assembly matching and stable operation.
