Exhaust Bellows Marine Diesel Engine Spare Parts is a critical core flexible compensation component for marine diesel engines. Made of high-temperature resistant and corrosion-resistant materials, it absorbs thermal expansion, vibration and displacement of exhaust pipelines to avoid pipeline stress damage. It features precise dimensional accuracy, stable structural performance and excellent fatigue resistance, suitable for routine servicing, shipyard overhaul and fault repair under marine harsh working conditions. A well-matched exhaust bellows stabilizes exhaust pipeline operation, prevents pipeline cracking and gas leakage, reduces component failure risks and equipment downtime, and ensures efficient and reliable operation of marine diesel engine units. Please provide equipment model, specifications and part number before ordering to confirm compatibility.

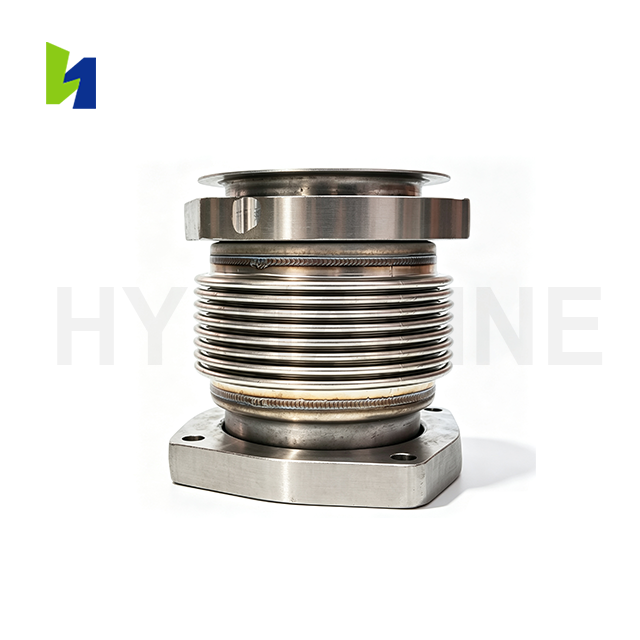

EL44 Exhaust Bellows | Ship Main Replacement Spare Parts
The EL44 Exhaust Bellows is a critical flexible compensating component specially developed for Hanshin EL44 series ship main engines. Fitted within the exhaust pipeline system, this bellows absorbs thermal expansion, mechanical vibration and axial / radial displacement generated during engine operation. It isolates vibration transmission between engine and exhaust piping while maintaining tight sealing of high-temperature exhaust gas. A damaged exhaust bellows will result in exhaust gas leakage, pipeline vibration overload and abnormal noise. Replacing with standard EL44 Exhaust Bellows restores pipeline flexibility and sealing performance, securing stable continuous operation of ship main propulsion engines.
Working under harsh marine operating conditions including long-time full-load continuous navigation, frequent thermal cycling, high-temperature flue gas erosion and ship salt-fog corrosion, the exhaust bellows will gradually develop fatigue cracks, surface oxidation and sealing degradation after long service hours. Failed bellows causes exhaust blow leakage, heat loss and accelerated wear of adjacent pipe fittings. Regular inspection and replacement of exhaust bellows are essential maintenance items for Hanshin EL44 engine overhaul and dry-dock repair projects.
This EL44 Exhaust Bellows adopts multi-layer high-temperature alloy structure with excellent flexibility and thermal fatigue resistance. The corrugated profile reliably compensates thermal deformation and mechanical offset, isolating vibration transfer between engine and exhaust piping. It maintains structural integrity and sealing performance under variable load and temperature fluctuation working conditions.
With outstanding high-temperature oxidation resistance and salt spray corrosion resistance, the exhaust bellows adapts to frequent start-stop and long-term heavy-load operation of marine main engines. It effectively reduces exhaust leakage, pipeline stress damage and component failure rate, stabilizes exhaust system operation, lowers daily maintenance costs and greatly improves the long-cycle operational safety and reliability of Hanshin EL44 marine diesel engines.
The EL44 Exhaust Bellows is manufactured from premium heat-resistant alloy sheet, specially customized for high-temperature exhaust and vibration environment of Hanshin EL44 marine main engines. Precision hydraulic corrugated forming ensures uniform wall thickness and stable elastic performance. Stress relief heat treatment eliminates residual forming stress to ensure long-term dimensional stability without fatigue fracture. Welded joints adopt full penetration welding for reliable gas tightness. The whole manufacturing process strictly complies with Hanshin OEM technical requirements and universal marine diesel industry standards.
Quantified Marine-Grade Performance Parameters
Parameter | Specification | Test & Implementation Standard |
Core Material | High temperature resistant alloy | Raw material spectrum inspection |
Surface Treatment | High temp anti-oxidation treatment | High temperature aging inspection |
Dimensional Tolerance | OEM-level precision matching tolerance | CMM full dimensional inspection |
Mechanical Performance | Vibration resistance, thermal fatigue proof, flexible compensation | Cycle vibration & thermal fatigue test |
Working Temperature Resistance | Adapt to high temperature exhaust pipeline | High-temperature structural stability test |
Service Feature | Gas tight, vibration damping, thermal displacement compensation | Marine long-cycle operation simulation test |
Compliance Standard | Universal marine industrial manufacturing specifications | Hanshin OEM & marine diesel industry norms |
All EL44 Exhaust Bellows are manufactured strictly in accordance with Hanshin OEM engineering drawings and marine exhaust pipeline component standards. Every workpiece undergoes raw material verification, corrugated forming, heat treatment calibration, welding and surface anti-oxidation treatment. Corrugation profile and flange geometric tolerance are fully controlled to ensure perfect coordination with exhaust pipes and connecting flanges.
Each finished exhaust bellows passes strict pre-delivery full inspection, including dimensional accuracy detection, air tightness testing, surface defect screening and flexible displacement test. All technical parameters fully match original equipment standards, supporting direct drop-in replacement without secondary processing, effectively improving main engine overhaul quality and post-maintenance operational stability.
MAIN ENGINE | MAN B&W | S26MC,L/S35MC,L/S42MC,L/S50MC,L/S60MC,L/S70MC,L/S80MC,L/S90MC,S46MC-C,S50MC-C,S60MC-C,S70MC-C,S80MC-C,S90MC-C,K90MC-C,K98MC-C,K/L45GF(CA),55GF(CA),67GF(CA),80GF(CA),90GF(CA) |
WARTSILA | 6L20,9L20,8L32,R22,R32,L20,L32 | |
PIELSTICK | PC2-2,PC2-5,PC2-5L,PC2-5V,PC2-6,PA4,PA5,PA6 | |
HANSHIN | EL30-44,ELS-35,44,LH-28G,LU24-54,LUN28AR(G),LUS24-58,LF46-58 | |
NIIGATA | 16HS,16X,18CX,19HX,20AX,25BX,25CX,26AFTE,26KGHS,28AFTE,28BX,28KGHS,31EZ,31X,32CLX,34AFTE | |
SULZER | RTA38,RTA48,RTA52,RTA58,RTA62,RTA68,RTA72,RTA76,RTA84,RL(A/B)56,RL(A/B)66,RL(A/B)76, RL(A/B)90,RND68,RND76 | |
AKASAKA | A31,A34,A38,A41,A45,AH25,AH27,AH28,AH30,AH38,AH40,K28,K31,DM28FD,DM38FD,DM40FD,DM51SS | |
MITSUBISHI | UEC33LSE,UEC37LA,UEC45LA,UEC50LS,UEC52LA,UEC52LS,UEC60LS,UET45/75C,UET45/80D, UET52/90D,UET52/105H | |
AUX.ENGINE | MITSUBISHI | S6A,S6B,S6R,S6N,S16N,S16R,S12R,SA2 |
MAN B&W | 16/24,20/27,21/31,23/30,25/33,28/32,32/40,48/60,58/64 | |
YANMAR | HAL,KL,KDL,KFL,RAL,MAL,S165,S185,M200,M220,T220,T240,T260,Z280,N165,N18,N21,N165,N260,N280, N330,NY16,EY18,EY22,EY26,4CHL,6CHL | |
DAIHATSU | DK20,DK26,DK28,DK32,DL16,DL19,DL20,DL22,DL24,DL26,DL28,DL32,DS18,DS19,DS22,DS26,DS28,DS32, DS40,PK14,PK16,PL24,PL26,PS18,PS20,PS22,PS26,PS30 |
We supply full-series matching spare parts for Hanshin EL44 engine exhaust system overhaul, including exhaust pipe, flange, gasket, expansion joint and complete exhaust pipeline overhaul kits, providing one-stop procurement solutions for shipyards, shipping companies and marine engine maintenance suppliers.
Each batch of EL44 Exhaust Bellows undergoes full-process professional inspection and performance screening, including raw material spectrum analysis, dimensional calibration, air tightness testing, surface defect detection and fatigue cycle test. All inspection records are archived completely for customer review and dry-dock audit.
Manufactured in strict compliance with universal marine diesel industry norms and Hanshin OEM technical specifications, this exhaust bellows meets the requirements of daily vessel navigation and engine overhaul projects, serving as reliable replacement spare parts for ship main engines.
The exhaust bellows is a key flexible compensating component of Hanshin EL44 engine exhaust pipeline system. Long-term high-temperature flue gas impact, vibration fatigue and salt-fog corrosion will cause corrugation cracking, air leakage and structural failure. Replace the exhaust bellows during major overhaul if gas leakage, corrugation crack or obvious deformation is detected. Installing new standard EL44 Exhaust Bellows restores pipeline vibration damping and thermal compensation capability, optimizes exhaust system safety and protects adjacent piping and engine components from secondary damage.
Regular inspection of exhaust bellows corrugation surface and sealing condition is an essential routine maintenance item for Hanshin EL44 marine main engines. For vessels with long-term continuous power operation, exhaust flexible parts are prone to thermal fatigue damage. Timely inspection and replacement can effectively avoid exhaust leakage, pipeline vibration damage and heat loss, ensuring stable and safe operation of shipboard power equipment.
Which engine does this exhaust bellows fit? This exhaust bellows is specially customized for Hanshin EL44 series ship main engines, also compatible with multiple mainstream marine main and auxiliary engine models listed above. Please provide complete engine model or original part number for accurate matching confirmation.
What is the delivery time? Standard EL44 Exhaust Bellows are in stock with 7–10 working days fast delivery. Non-standard customized specifications support 7–15 working days production cycle.
Can you provide customized processing services? Yes, we support OEM customization and non-standard processing according to customer drawings and samples. All customized products undergo full-dimensional inspection and air tightness testing before shipment.
What is your warranty policy? 12-month warranty for material and manufacturing defects. We provide professional after-sales technical support including installation guidance and assembly parameter verification.
What is the MOQ and export packaging? MOQ is 1 unit for in-stock products, with favorable bulk discount for fleet batch orders. Standard export packaging adopts anti-rust treatment, moisture-proof wrapping and solid plywood crating, adapting to long-distance ocean transportation and overseas storage.
